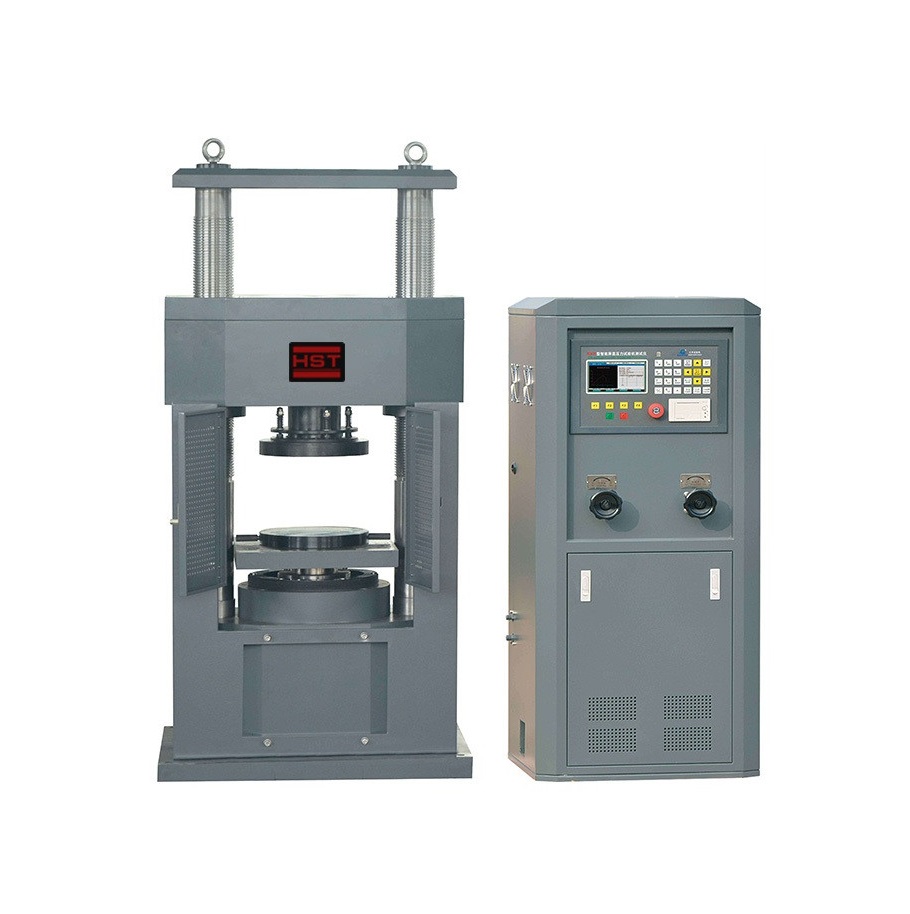

HST YES-2000E Digital Display Compression Testing Machine (2000kN/200Ton, AC380V)

Max. load: 2000kN/200Ton

Machine Class: 1 class

Range of test force: 4% ~100%FS

Indicating value accuracy: ±1%

Piston stroke: 150mm

Distance between upper and lower platen: 600mm

Upper and lower platen size: 300*300mm (tùy chỉnh)

Display: LCD

Power supply: AC380V/50Hz/3 phase(tùy chỉnh)

Size: 900×400×1150 mm

Weight: 750kg

Main configuration

Main unit and oil source control cabinet 1 set

High precision compression sensor 1 pc

English version operate instrument 1 suit

Micro printers 1 set

Specialized compression attachment 1 suit

Accompany tools 1 suit

Accompany documents 1suit

Bending fixture Optional

Datasheet
