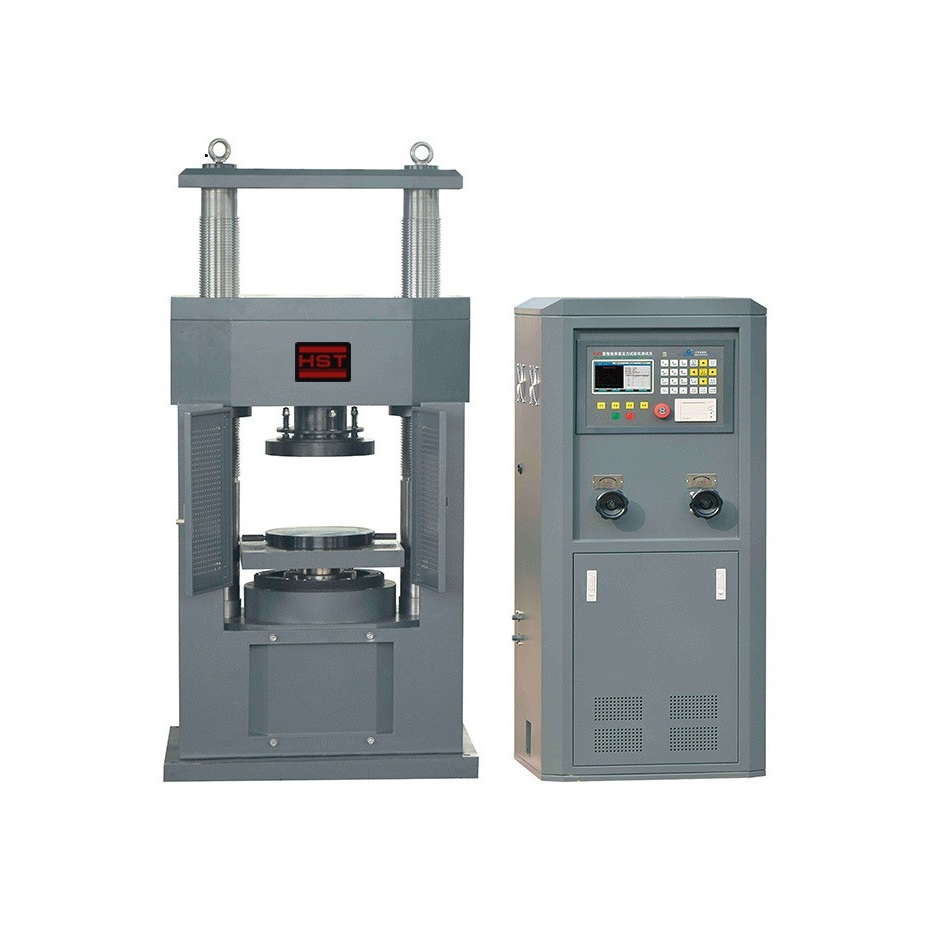

HST YES-3000E Digital Display Compression Testing Machine (3000kN/300Ton, AC380V)

Max. load: 3000kN/300Ton

Machine Class: 1 class

Range of test force: 4% ~100%FS

Indicating value accuracy: ±1%

Piston stroke: 200mm

Distance between upper and lower platen: 650mm

Upper and lower platen size: Φ300mm (Can be customized)

Display: LCD

Power supply: AC380V/50Hz/3 phase(can be customized)

Size: 960×740×2080 mm

Weight: 3100 kg

Main configuration:

Main unit and oil source control cabinet 1 set

High precision compression sensor 1 pc

English version operate instrument 1 suit

Micro printers 1 set

Specialized compression attachment 1 suit

Accompany tools 1 suit

Accompany documents 1suit

Bending fixture Optional
