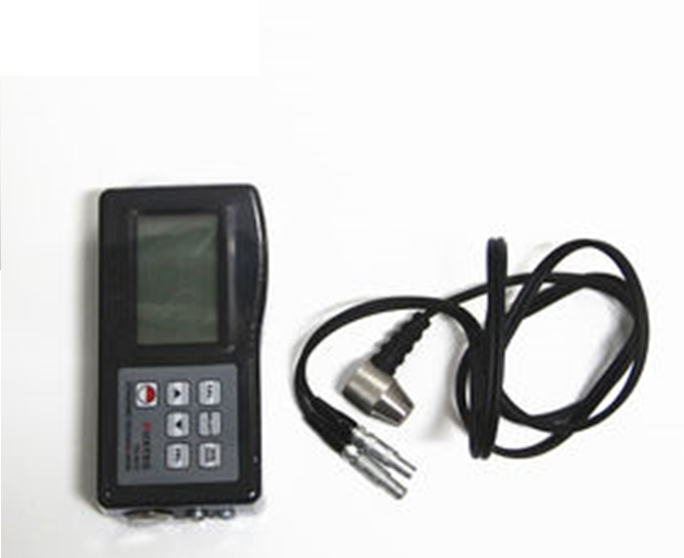

HUATEC TG8812 超声波测厚仪 (0.9 to 300mm)

Measuring Range (Standard): 0.9 to 300mm

Standard mode: 0.9 to 300mm Probe: 5PΦ10mm

Display Resolution: 0.1mm

Measurement Resolution: ±(1%H+0.1)mm

Material Velocity: 1000～9999m/s

Bandwidth: 1MHz～10MHz(-3dB)

Power Supply: 4.5VDC (three AAA batteries)

Screen: TFT Color screen 2.3 inch

Size: 130(L)×70(W)×25(H)mm

Weight: 125g (excluding batteries)

Work Temperature: -10～﹢50℃(with high temperature probe, up to 300℃)

Work Humidity: 20%～90%RH
