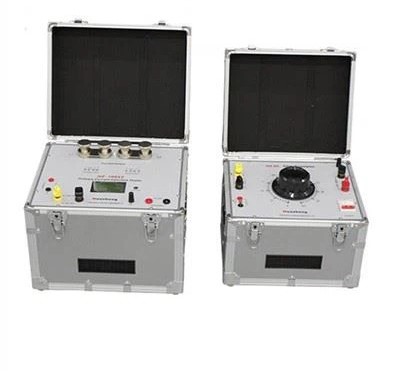

Huazheng HZ-109S3 High Current Generator Primary Injection Test Set (3000A)

Input power supply: AC: 380V · 50A, 50Hz

Output current: AC: 3000A · 5V, 1500A · 10V

Output current waveform distortion: ≤ 5%

LCD digital display, range: 03300A, resolution: 0.1A,

Accuracy: 0.5%; Secondary measurement current range: 0-6A, resolution: 0.001A

Operating environment: temperature - 1040C, relative humidity 80%

Volume: 410 × 370 × 320 mm3

Weight: 48Kg (with universal wheels), external voltage regulator 42Kg
