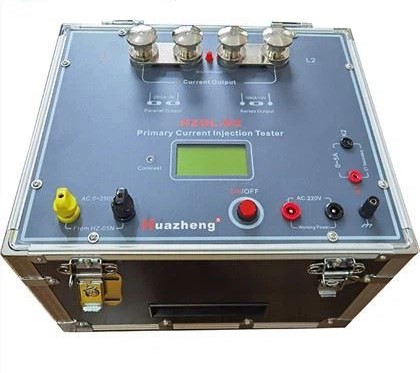

Huazheng HZDL-N2 Primary Current Injection Tester (2000A)

Input Power Supply: AC：220V·50A,50Hz.

Output Current: AC：2000A·6V or 1000A·12V.

LCD Screen Digital Display: Simultaneous display of primary current and secondary current as well as the turn ratio;

The Range of Primary Current: 0~2200A, Resolution：0.1A;

The Range of Secondary Current: 0～6A; Resolution：0.001A.

Precision: TRUE RMS +-0.5%.

Usage Environment:

Temperature -10~40℃,

Relative humidity <80%.
