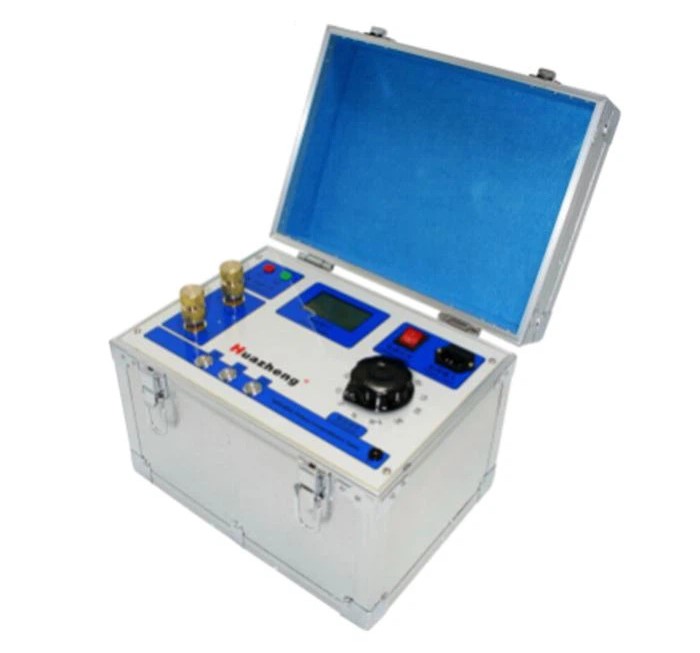

Huazheng HZDL500A Primary Current Injection Tester (500A)

Input voltage: AC220V ±10%

Power rate: 3KVA

AC 0 ~ 500A stepless adjustable, panel with digital display ammeter

Output voltage: 5V

Output waveform: the output current is the standard sine wave, tiny burr, better

than the power system requirements of the index standard, ripple coefficient is small

At 0.3% standard sine wave.

Measurement accuracy: (0.2S grade material) actually about 0.3; Each current canbe smooth and continuous adjustable, high accuracy

At 0.2, the current voltmeter is displayed as the true and effective value, with highaccuracy and stability.

Output current mode: true effective value continuous adjustable;

Current stability: 0.2%

Structure form: integrated

Wiring mode: according to the requirements

Protection Settings: over current, over voltage.
