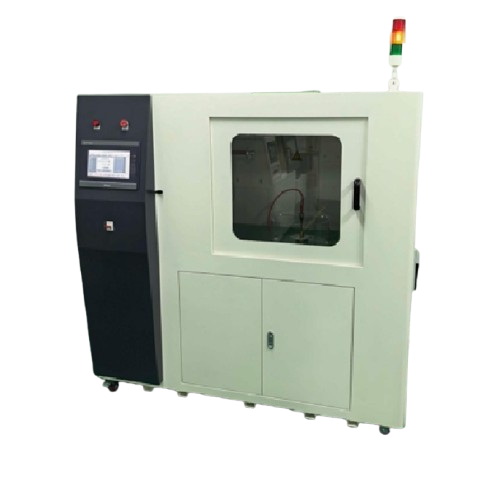

Huazheng HZJC-50SP Breakdown Voltage Tester (0 ~ 50 kV,5 kVA)

Maximum test voltage: AC/DC 50 kV

Voltage measuring range: 0 ~ 50 kV

Voltage accuracy: Better than 1.0%

Transformer capacity: 3.0 kVA

Total capacity: 5 kVA

Voltage resolution: 0.001 kV

Ramp rate: 0.001 kV/s ~ 5 kV/s

Ramp rate accuracy: Better than 2%

Protection resistor: 25 kΩ

Filter capacitor: 50 kV / 51000 pF

Voltage fluctuation factor: Better than 2.0%

Withstand time: Unlimited

Timing accuracy: 0.1 s

Over-current / leakage current: 0.1 ~ 50 mA, freely settable

Current resolution: 0.1 mA

Test modes: Continuous ramp / constant-voltage withstand / step ramp / 60 s step ramp / 20 s step ramp

Stop criteria: Voltage stop / current stop / time stop

Display and control: Siemens PLC + 10-inch Kinco touch screen

Safety protection: Fully enclosed test chamber; 24 V door interlock switch; the safety door locks automatically once the

test starts; automatic discharge after the test

Other functions: Tri-colour indicator light; test chamber lighting; exhaust function (100 kV model); automatic voltage

stabilisation; monitoring of closing, zero position, voltage rise and voltage drop

Power supply: 220 V ±10%, 10 A, 50 Hz

PRODUCT INTRODUCTION

The HZJC series breakdown voltage test instrument is mainly used for the breakdown voltage and electric strength testing of insulating materials such as electrical insulating paper, film, flexible composites, resin adhesive, rubber, plastics and boards.

The main control unit combines a Siemens PLC with a 10-inch Kinco touch screen. It displays the real-time voltage and current curves and monitors the whole process — closing, zero position, voltage rise and voltage drop — with a clear and intuitive interface that makes the instrument simple and convenient to operate. A dedicated digital filtering technique effectively avoids the deviation of the test data caused by the strong discharge interference at the instant of breakdown, so that the test results are accurate and reliable. The protective door interlock circuit is supplied at the 24 V safety voltage, making operation safe and stable. During the withstand test the instrument provides automatic voltage stabilisation against mains voltage fluctuation, and the ramp rate can be adjusted steplessly within 0.001 ~ 10.00 kV/s. Its main performance is comparable with high-end imported brands, with better cost performance and better after-sales support.
