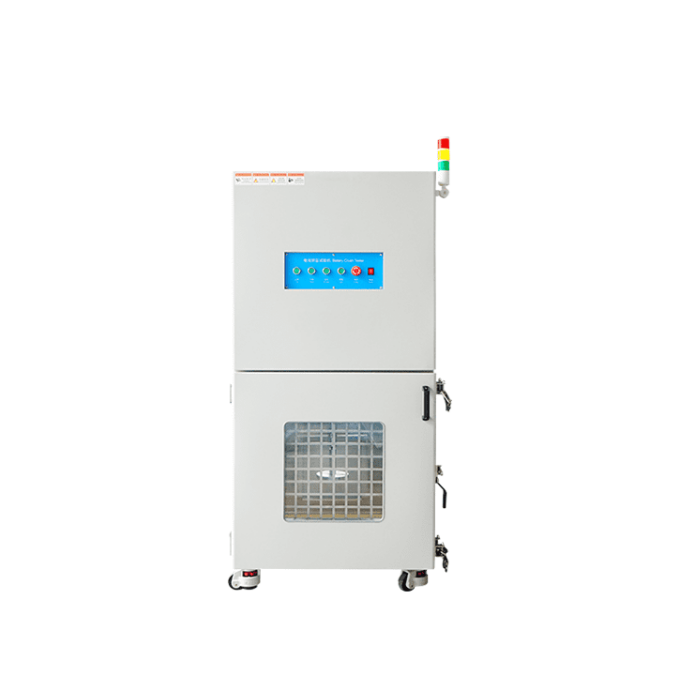

Huda HUD-H205 电池挤压试验箱 (1～20kN, AC380V)

Drive mode: Servo motor;

Control method: PLC touch screen control;

Force range: 1～20kN;

Extrusion stroke: 250mm;

Force value display: PLC touch screen control;

Extrusion head area: ≥20cm²;

Extrusion degree: Extrusion pressure reaches 13±0.2kN, keep it for 1min;

Test space: 200x200x200mm (width x depth x height);

External material: A3 steel plate and painted, thickness 1.5mm

Material of inner box: SUS#304 thickness 1.2mm;

Inner box size: 520x450x560mm

Dimensions: 800x700x1720mm

Weight: about 220kg

Power supply: AC380V, 50HZ
