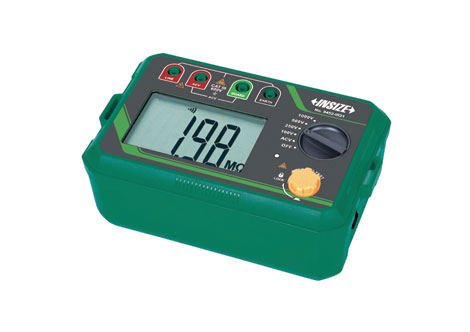

INSIZE 9452-IR21 绝缘电阻测试仪 (1kV, 5.00GΩ)

Insulation resistance

test voltage*: 100V

range:100ΜΩ

test voltage*: 250V

voltage*: 100V

range: 500ΜΩ

test voltage*: 500V

voltage*: 100V

range: 2.00GΩ

test voltage*: 1000V

voltage*: 1000V

range: 5.00GΩ

resolution:

0.00MΩ-9.99ΜΩ: 0.01 ΜΩ

10.0ΜΩ-99.9ΜΩ: 0.1ΜΩ

100MΩ-999MQ: 1MΩ

1.00GΩ-5.00GQ: 0.01GΩ

accuracy:

0-99.9MΩ: ±(3%+5d);

100MΩ-5.00GΩ: ±(5%+5d)

AC voltage**:

range: 30-750V (50/60Hz)

resolution: 1V

accuracy: ±(2%+3d)

Short-circuit current: <2.0mA

Operation environment:

temperature: 0°C~35°C;

humidity: <75%RH

Power supply: 6×1.5V AA batteries or AC/DC adapter (optional)

Dimension: 184×115×75mm

Weight: 600g

*Open-circuit voltage: DC voltage 0~+10%

**Data hold and backlight display function not applicable for AC voltage measurement

STANDARD DELIVERY

Main unit: 1 pc

Test lead: 2 pcs

Test clip: 2 pcs

Battery (AA): 6 pcs

■ Continuous measurement: press and rotate the test button to measure continuously

■ Alarm function: the tester alerts with buzzer when the insulation resistance is less than 4MQ

■ Over-range indication

■ Data hold

■ High-voltage output alert

■ Auto backlight display

■Low battery indication

■ Auto power off
