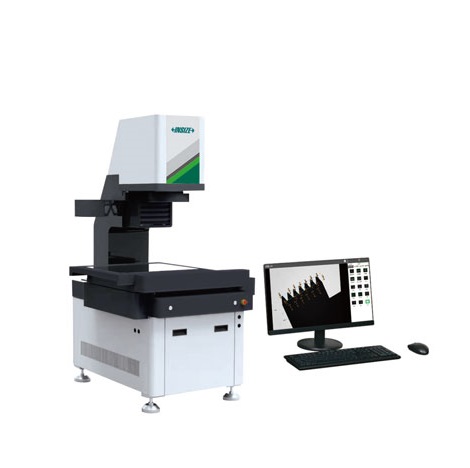

Optical lens: Dual-field dual-telecentric low-distortion lens
Measurement range:
Wide view field: 500x400mm
Small view field: 430*350mm
Travel range(X*Y*Z) : 410x340x250mm
Magnification:
Wide view field: 3.6X
Small view field: 14.2X
Illumination system
Transmission light: telecentric illuminator, green light
Surface light: vertical illuminator
Coaxial light(optional): vertical illuminator, white light
Glass stage size:520x420mm
Max weight of workpiece: 25kg
Measurement time:<2s
Measurement data: 2D measurement
Environmental requirement:20°C + 2°C, 30% -80%RH, vibration: <0.002g, less than 15Hz
Power supply:1200W
Dimension (LxWxH):1060x824x1818mm
Weight: 800kg
