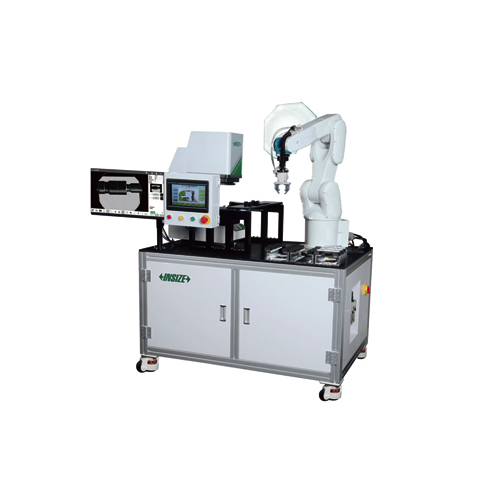

INSIZE RBT-QM01 Automatic Quick Measurement Inspection System (727 mm; 98 × 78 mm)

Robot

Robot Arm Spreading: 727mm

Max Working Speed: 4000mm/s

Max Weight of Workpiece: 8kg

Repeat Positioning Accuracy: ±0.02mm

Number of Control Axes: 6

Communication Protocols: Ethernet, Modbus TCP

Quick Measurement System*

View Field: 100 × 80mm

Measurement Range: 98 × 78mm

Measurement Accuracy: ±3μm

Repeatability: 1μm

Measurement Time: <2s

Power Supply: 220V, 50Hz, 3000W

Supply Pressure: 0.5~0.6MPa

Temperature: 20°C ±2°C

Relative Humidity: 30%~80%

Weight: 300kg

*The quick measurement system is available in different models depending on the workpiece

Datasheet

Standard Delivery:

Robotic System:

Robot Body

Robot Control Cabinet

Programming Guide:

Main Unit

Computer

Software and Dongle

Quick Measurement System

Control Touch Screen: 1 pc

Control Box: 1 pc
