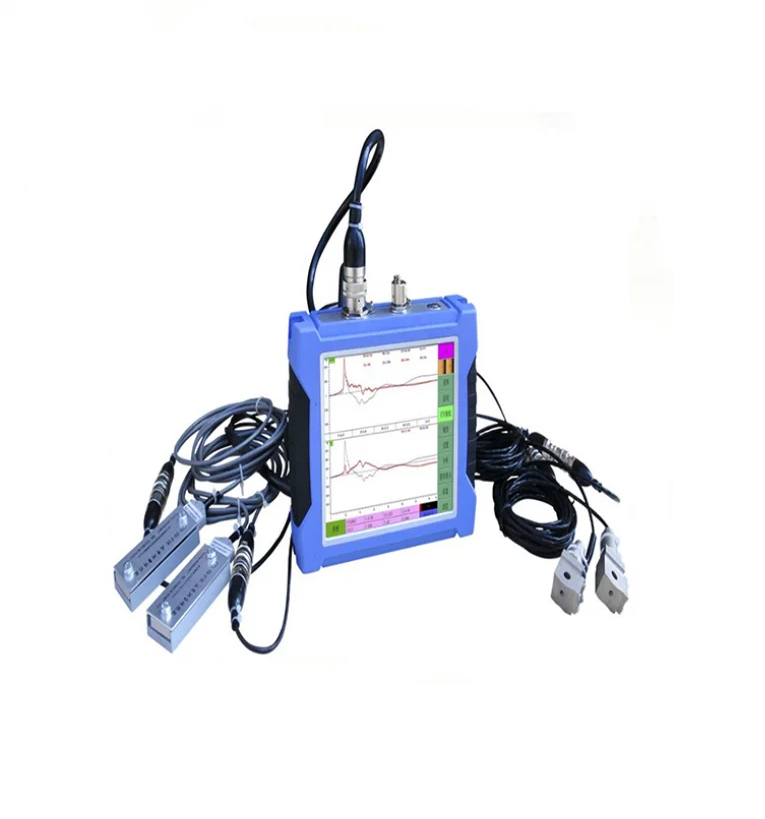

IWINTESTING PDA High Strain Pile Driving Analyzer Tester (-20 ºC ~ +70 ºC;10 ~ 12,000 Hz)

Size/Weight: L255×W180×H56mm / 1.8kg with battery

Touch screen: 8.4-inch TFT true color LCD with 800 × 600 resolution

Temperature Range in Operating: -5 ºC ~ +40 ºC

Temperature Range in Storage: -20 ºC ~ +70 ºC

Power: 6 working hours (internal battery)

Controlling System: Industrial computer

Operating System: Unix OS

Converter: 3×16 bit A/D converter

Sampling Interval: 5 to 65,536 μs

Sampling Accuracy: Within 0.01%

Trigger level: Multiple level

System Noise Level: <2μv

Frequency Bandwidth: 10 to 12,000 Hz

Dynamic Range: ≥ 100dB

Data Storage: 3,000 piles

Data Transfer Mode: USB 2.0

Data Length: 1k

Data Channel: 4 channels

Data Sensor: Accelerometer, strain transducer

Test Mode: 2V+2F; 2V+2V

PDA Testing will provide prediction on the pile bearing capacity, pile integrity, driving stresses and hammer performance for a given pile penetration. It is a relative low cost type of pile testing compared to static load test (MLT or CRP). The testing technique is quick and accurate.

PDA also can be used to perform high strain pile bearing monitoring to evaluate pile driving information for pile bearing capacity, pile integrity, driving stresses and transferred energy against pile penetration. The results are essential for the actual pile driving process and to obtain valuable data on the hammer, pile & soil system for re-design on the piled foundation (if necessary).
