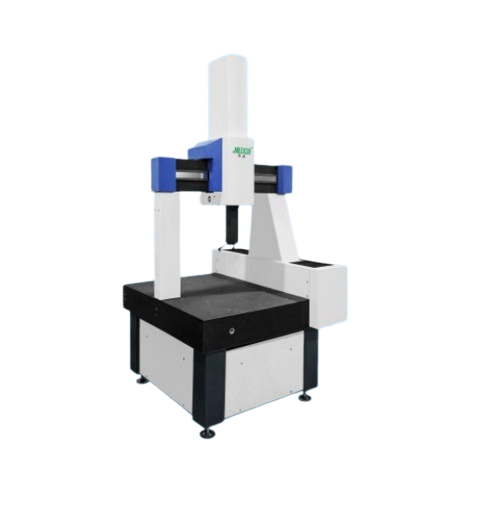

Jaten CNC-10907 Argon Medium-sized Coordinate Measuring Machine (X900,1000; Y1000-5000; Z700,800)

Measuring Range (mm): X900,1000; Y1000-5000; Z700,800

Overall Dimensions (mm): X1650,1750; Y1800-5900; Z2900

Resolution: 0.5

Maximum Permissible Error (ISO 10360-2): 1.2 + L/350 µm

Max. Velocity (mm/s): 300

Air Requirements: 0.6 - 0.8 Mpa

Max. Workpiece Weight (kg): 500
