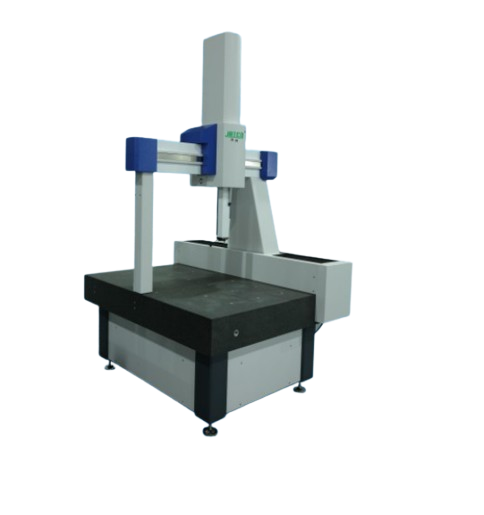

Jaten CNC-151512 Argon Medium-sized Coordinate Measuring Machine (X1500; Y1500-5000; Z1200,1300)

Measuring Range (mm): X1500; Y1500-5000; Z1200

Overall Dimensions (mm): X2100; Y2150-5650; Z2900

Resolution: 0.5

Maximum Permissible Error: 1.2 + L/350 µm

Max. Velocity: 300

Air Requirements: 0.6 - 0.8 Mpa

Max. Workpiece Weight (kg): 800
