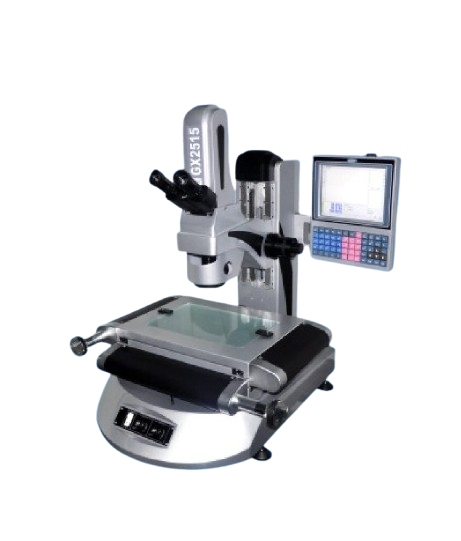

Jaten GX2515-IIA Tool Microscope (250x150x150)

Visual System

Objective Magnification: IX (standard), 2X (optional)

Eyepiece Magnification: IOX (monocular or binocular, optional)

Total Magnification: IOX - SOX (including distortion)

Objective Lens Magnification Error: ≤0.08%

Imaging System

Camera: 1/3" CCD

Video Magnification: 30X - 230X

Image Resolution: 640 x 480

Z-Axis Travel: X-Axis: 250  Y-Axis: 150 Z-Axis: 150 (focusing travel)

Resolution (X, Y, Z Axes): 0.0005 mm

Coordinate Indication Error (µm): X, Y (3 + L / 150)

Reflected Illumination Source: 12V LED Ring Light with Laser Spot Refledive Illumination
