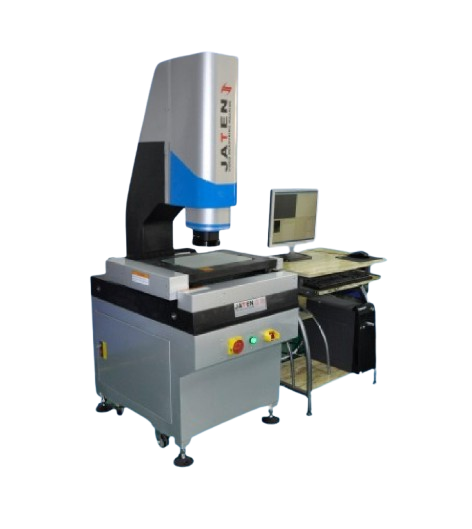

Jaten JTDQA- 3020(CNC) High-End Fully Automatic Vision Measuring Machine (300x200x200mm)

WORKING STAGE:

X,Y,Z-axis Travel(mm): 300x200x200

Dimensions(mm): 890x630x1780

Load-bearing weight: 35

net Weight (KG): 410

Accuracy:

X, Y-axis (µm): (3+L/200)µm, Repeatability 2µm

Z-axis: (4+L/200)µm

Grating ruler: High-precision grating ruler, resolution 0.Sµm

CCD: Japan Sentech Color 625 colorful CCD Camera

Optical system: Automatic Zoom Lens 0.7-6.Stimes, zoom ratio 12X, Video Total Magnification:30X-2;   30X, Object View:7-1. Imm, Optional Laser.UK Renishaw Probe

Illumination system: Continuous adjustable LED ring surface &contours&coaxial light, according to program- to adjust the intensity&rate of light

Software system: QuickMeasuring, Automatic video measurement software

Working Enviroment: 20C±3C, Temperature 45% -75%, isolated from the external vibration source

power supply: 220V ±10%, 180V-260V(AC), 50HZ

Optional Accessories: Can match with Objective/Laser/Probe/cupboard/version/ Brand CCD......
