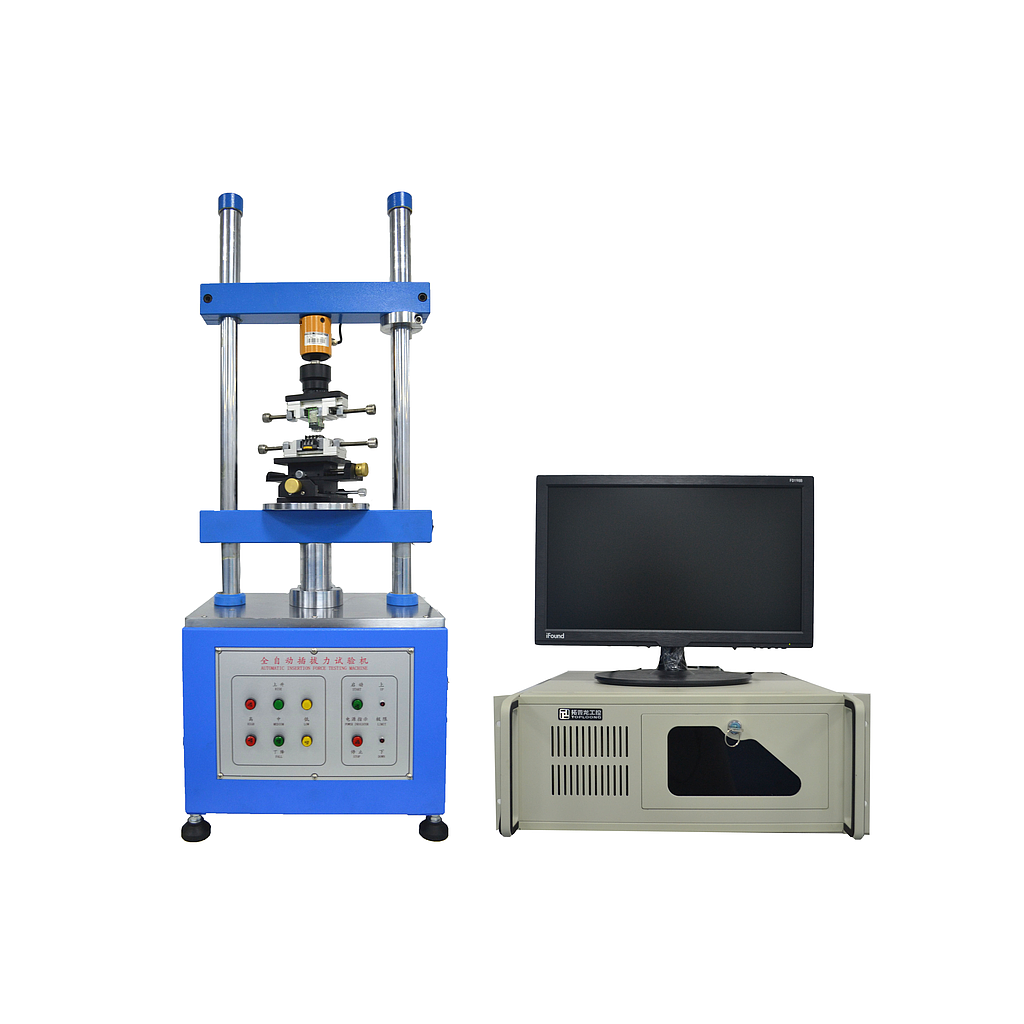

Jinuosh 1220S Fully Automatic Plug And Pull Force Tester

Maximum Measuring Load: 5 kg, 20 kg, or 50 kg (one option)

Minimum Load Resolution: 1 g

Displacement Resolution: 0.01 mm

Maximum Measuring Height: 150 mm

Measuring Speed Range: 0.01–150 mm/min

X/Y-Axis Travel Range: 0–70 mm

Transmission Mechanism: Ball screw

Crossbeam Spacing: 440 mm

Overall Dimensions: 600 × 280 × 1180 mm

Weight: 100 kg (machine)

Power Supply: AC 220 V
