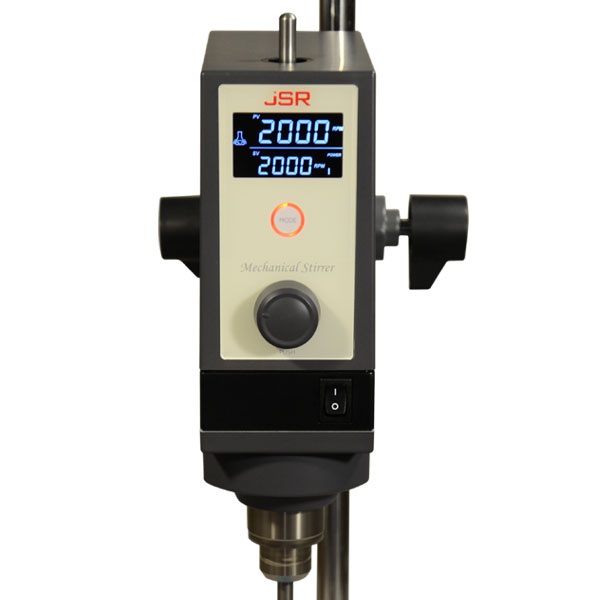

JSR JSMS-070D Digital Overhead Stirrer (25 L; 100 ~ 2,000 rpm)

Stirring Capacity (H₂O): Max. 25 L

Dimensions (W × D × H): 80 × 190 × 245 mm

Speed Range: 100 … 2000 rpm

Maximum Viscosity: 70,000 mPa·s

Maximum Torque: 120 N·cm

Gear Ratio: 2.0:1

Impeller Shaft Diameter: Ø8 … Ø10 mm

Impeller Shaft Length: 500 … 800 mm

Controller: Digital Fuzzy Controller

Display: Backlit Graphic LCD

Control Interface: Capacitive Touch LED Buttons, Push & Rotary Encoder Jog Dial

Resolution: 5 rpm

Timer: 1 min … 99 hr 59 min

Power Supply: 220 VAC ±10%, 50/60 Hz

Motor Rating (Input/Output): 110 W / 85 W

Nominal Power: 180 W

Phase: Single Phase

Plug Configuration: CEE 7/7 Schuko

Temp. & Humidity: 0 °C … 40 °C / < 80% RH
