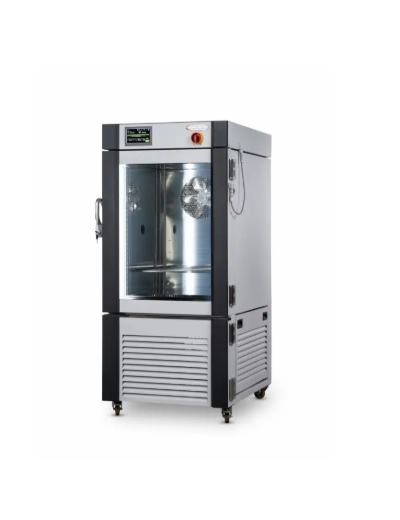

Kambic KK-190 CHLT Climatic Chamber (190L, –40 ~ +180 °C, 10–98% RH)

External dimensions: 835 × 1661 × 951 mm

Internal dimensions: 600 × 615 × 510 mm

Volume: Approx. 190 liters

Temperature setting range: –40 to +180 °C

Heating rate (in accordance with EN 60068-3-5): 2.0 °C/min

Cooling rate (in accordance with EN 60068-3-5): 2.5 °C/min

Temperature display resolution: 0.1 °C

Temperature setting resolution: 0.1 °C

Temperature stability:

±0.2 °C at –40 °C

±0.05 °C at 50 °C, 50% RH

±0.05 °C at 90 °C, 90% RH

±0.15 °C at 180 °C

Temperature uniformity:

±0.5 °C at –40 °C

±0.3 °C at 50 °C, 50% RH

±0.3 °C at 90 °C, 90% RH

±1.5 °C at 180 °C

Heating capacity:

Approx. 350 W at –30 °C

Approx. 1,500 W at –5 °C

Approx. 3,000 W at +20 °C

Humidity setting range: 10–98% RH

Humidity display resolution: 0.1% RH

Humidity setting resolution: 1% RH

Humidity stability:

±0.3% RH at 50 °C, 50% RH

±0.3% RH at 90 °C, 90% RH

Temperature controller: PID (PT-100)

Humidity controller: Dew-point-based RH control via a capacitive RH sensor. A dry-air filter enables an extended operating humidity range.

Power supply: 230 V, 50/60 Hz (±10%)

Power consumption: 3,600 W

Interfaces: Ethernet, USB

Number of shelves (included/maximum): 1/8

Maximum load per shelf: 35 kg

Maximum chamber load: 80 kg

Humidification water reservoir capacity: 19.6 liters

Water consumption at +90 °C / 90% RH: Approx. 1.5 liters/24 hours

Viewing window: Included

Access port (left side): Ø 50 mm

Noise level at a distance of 1 m: 60 dBA

Weight: Approx. 278 kg
