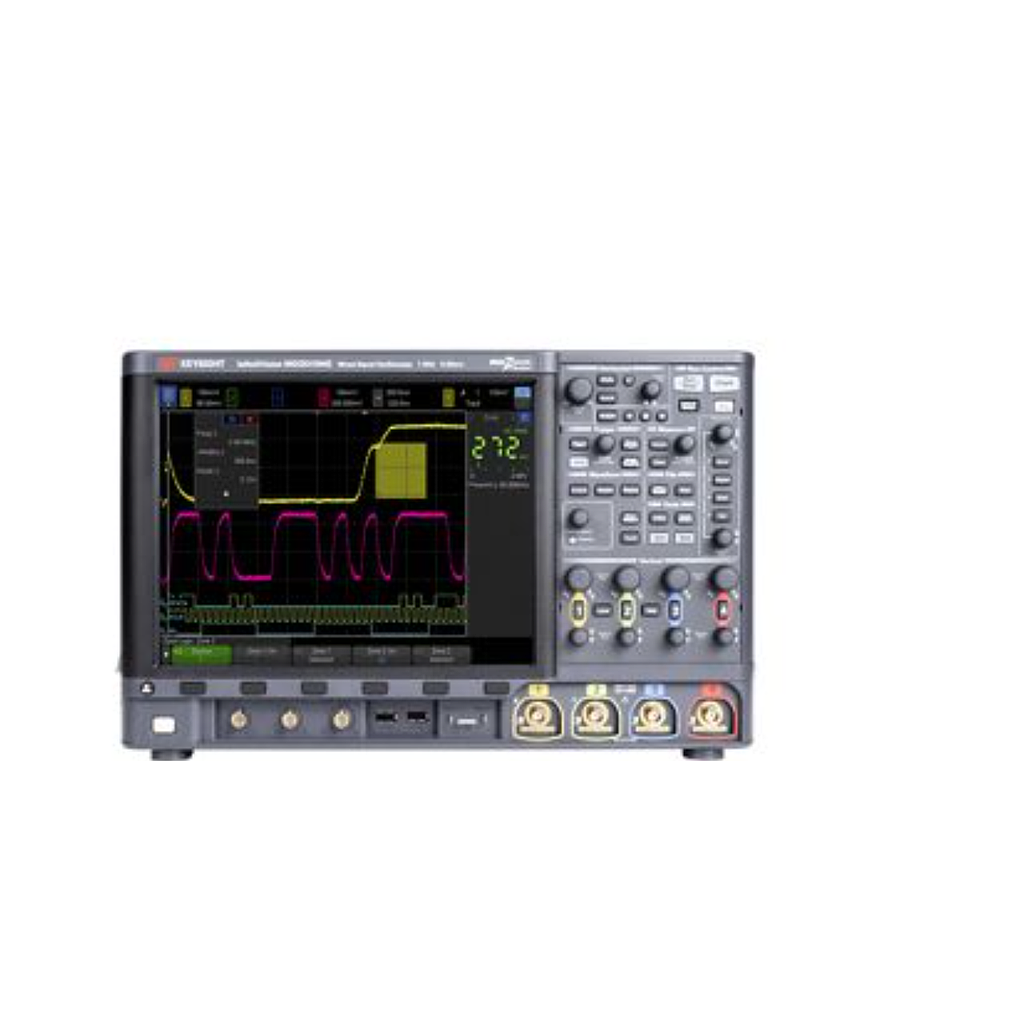

KEYSIGHT DSOX4034G 示波器 (350 MHz; 4 channels; 5 GSa/s, w/ Wavegen)

Bandwidth: 350 MHz

Channels: 4

Max sample rate: 5 GSa/s

Memory: 4 Mpts

Display: 12.1-inch capacitive touch display

Update rate: 1,000,000 waveforms per second

Connectivity: USB 2.0 (host x3, device x1), LAN, VGA out, GPIB (option)

Dimensions: (W x H x D) 454 mm x 275 mm x 156 mm

Weight Net: 6.3 kg (13.9 lbs), shipping: 11.4 kg (25 lbs)

WaveGen 20-MHz function/ arbitrary waveform generator: Dual channel AWG

Serial protocol analysis: Yes
