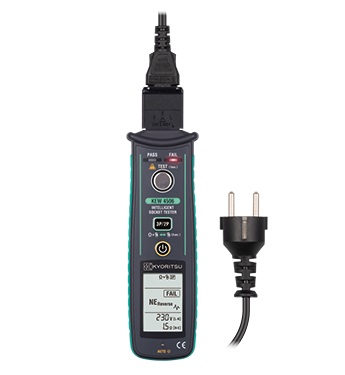

KYORITSU 4506 智能插座测试仪

* Socket test

Measurable range of power supply voltage : 80V rms - 290V rms (50/60Hz)

* The tester gives voltage warning if 253V or higher voltage is detected

but it can perform socket test.

* AC V (L-N)

Range : 80 - 290V rms (50/60Hz)

Accuracy : ±2%rdg±4dgt

* Loop resistance (N-E)

- Range (Auto-ranging) :

+ 200Ω: 0.0 to 199.9Ω

+ 2000Ω: 200 to 1999Ω

- Test current

200Ω: 5mA (5.3 Hz)

2000Ω: 1mA (5.3 Hz)

- Accuracy ±3%rdg±5dgt

* General :

Applicable standards : IEC 61010-1, 61010-2-030 CAT Ⅱ 300V, Pollution degree 2, IEC 60529(IP40)

Operating temperature & humidity range : -10 to 50℃, RH 85% or less

Storage temperature & humidity range : -20 to 60℃, RH 85% or less

Power source : LR6 (AA)(1.5V) × 2

Dimensions : 212(L) × 56(W) × 39(D) mm

Weight Approx : 250g (including batteries)

* Included Accessories

- Test lead with IEC connector *3

- 9161 (Carrying case)

- LR6 (AA) × 2, Instruction manual

* Optional Accessories : 8343 (Signal Source for Intelligent Socket Tester)
