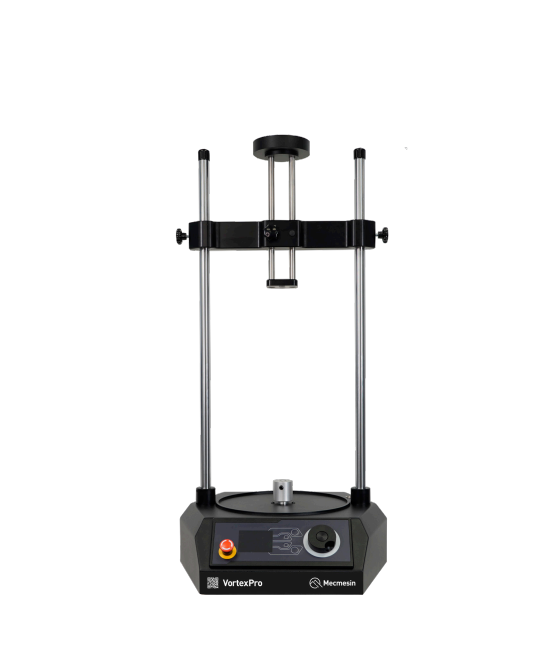

Mecmesin VortexPro Semi-automated Torque Tester (10 N.m / 90 lbf.in / 100 kgf.cm)

Torque

Capacity: 10 N.m / 90 lbf.in / 100 kgf.cm

Sensors (ETS): 6 models from 0.3 to 10N.m

Accuracy: ±0.5% of full scale

Resolution: 1:50,000

Units of measurement: mN.m, N.cm, N.m, kgf.cm, gf.cm, ozf.in, lbf.in, lbf.ft

Sampling rate: Selectable: 10 - 1,000 Hz

Angle

Angular rotation (from tared position): Max. 2,999 revs

Accuracy: ±0.2°

Resolution: 0.1°

Speed

Range: 0.1 - 30 rev/min (clockwise or anticlockwise)

Accuracy: ±1% of indicated speed

Resolution: 0.001 rev/min

Static weights

Axial load via masses on platen: 60 N (maximum)

Dimensions

Maximum headroom: 483 mm (without fixtures)

Maximum travel of adjustable carriage: 182 mm

Width between columns: 280 mm

Height: 1000 mm

Width: 400 mm

Depth: 372 mm

Weight: 20 kg

Common specifications

Maximum power requirements: 120 W

Voltage: 230 V AC 50 Hz or 110 V AC 60 hz

Operating temperature: 10 - 35°C (50 - 95°F)

Humidity range: Normal industry and laboratory conditions (30-80%), non-condensing
