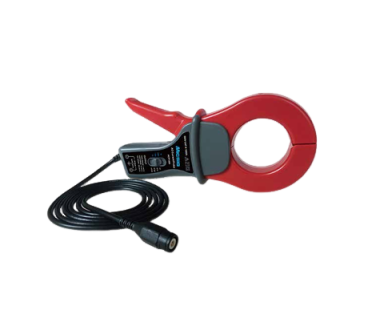

MICSIG ACP1000 AC Current Probe (10Hz-100kHz; 0.1Apk-1000Apk)

Input: 0.1-10A; 0.1-100A; 1-1000A

Rated output: 100mV/A; 10mV/A; 1mV/A

Frequency (Hz): 10Hz-100kHz

Rated Burden: ≥100kΩ

Accuracy grade: 3%±10mV; 2%±5mV; 1%±1mV

Current Range: 0.1A-1000A

Max. Working Current: 2000A (2s)

Maximum Accuracy: 1%

Safety Class: CAT III 600V

Max. Conductor Diameter: 52 mm

Dimensions: 111*216*45mm
