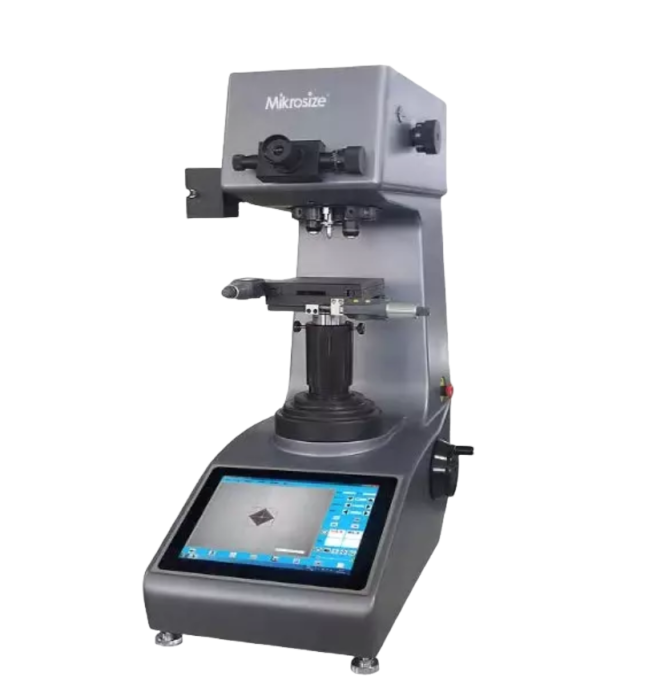

Mikrosize MVision-1 Intelligent Semi-Auto Vickers Hardness Tester (1HV~2967HV / 10gf -1000gf)

Test Force: 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf

Test Range: 1HV~2967HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Turret: Automatic Shifting

Micro Computer: CPU: Intel I5，Memory: 4G，SSD: 240G

CCD Pixel: 1.30 Million

Conversion Scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N,HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW

Hardness Reading: Automatic Display on Touch Screen

Data Output: WORD or EXCEL Report with Curve Chart

Objective: 10×, 40×

Effective Field of View: 10x: 680μm, 40×: 170μm

Dwell Time: 0~60s

Illumination: Halogen Lamp

Digital X-Y Test Anvil: Size: 120×120mm, Travel: 25×25mm, Resolution: 0.001mm

Test Height: 170mm

Test Throat: 130mm

Power Supply: AC220V，50Hz

Executive Standard: ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2

Machine Dimension: 560×335×675mm

Net Weight: 48kg

Packing List:

Instrument Main Body: 1 set

10×Eyepiece: 1 pc

10x,40x Objective (Micro Vickers): Each 1 pc

Diamond Vickers Indenter: 1 pc

10x,20x,40x Objective (Macro Vickers): Each 1 pc

Hardness Block 400~500 HV5 (Macro Vickers): 1 pc

Digital X-Y Test Anvil: 1 pc

Flat Clamp: 1 pc

Thin Specimen Clamp: 1 pc

Filament Clamp: 1 pc

Hardness Block 400~500 HV0.2 (Micro Vickers): 1 pc

Hardness Block 700~800 HV1: 1 pc

Weights (Micro Vickers): 6 pcs

Weight Axis: 1 pcs

Horizontal Adjusting Screw Feet: 4 pcs

Level: 1 pcs

Fuse 1A: 2 pcs

Halogen Lamp 12V、15~20W: 1 pcs

Power Cable: 1 pcs

Screw Driver: 2 pcs

Anti-dust Cover: 1 pcs

U-flash disk: 1 pcs

Mouse: 1 pcs

Usage Instruction Manual: 1 copy
