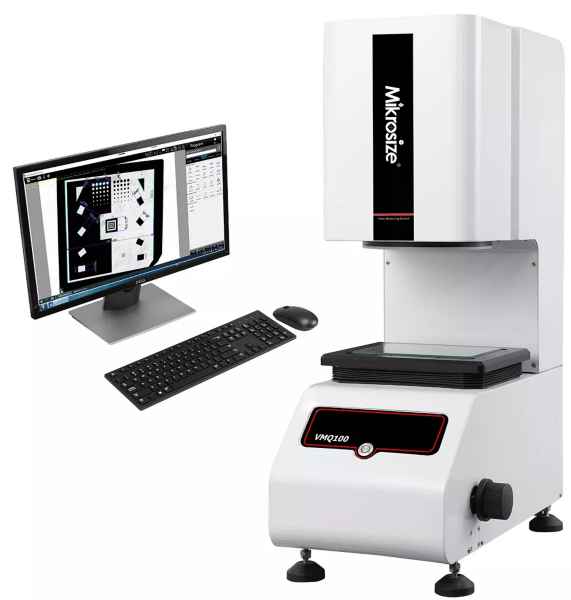

Mikrosize VMQ-100 Instant Video Measuring System (99p/s, AC100-240V 50/60Hz)

Instrument Dimensions: 480×240×680

Instrument Weight: 30KG

Working Stage Capacity: 3KG

Software: Fom2d

Camera: 5 millions Pixels CCD Industrial Camera

Lens: Double Telecentric Lens

Illumination: Program controlled parallel light or telecentric parallel light, each section of brightness is controlled independently

Field of view: 30mm~100mm

Focus: Manual

Measuring Accuracy: ±3 µm

Measuring Function: Point, line, circle, multipoint line, multipoint circle, automatic circle, arc, multisection circle, automatic R angle, contour scanning,fifixed point, peak line, circle, etc

Tagging Function: Aligned, vertical, angular, radius / diameter

Geometrical Tolerance: Straightness, roundness, symmetry, profifile, etc

Virtual Structure: Center line, bisector, tangent point, tangent point of circle line,circle center, line center, etc

Automatic Template Matching: Support

Report Function: SPC analysis report ( CPK, CA , PPK, CP, PP )

Software Customization:CAD import profifile analysis, automatic management link,APP management application

Measuring Quantity: 99 pieces/second

Template quantity: Unlimited

Power: AC100-240V 50/60Hz

Working Environment: Temperature 23 C ± 2 C humidity 20% to 80% RH

Packing List

Machine Mainframe

Dell 24 inch Computer

Mikrosiz Measuring Software

Telecentric Lens

High Pixel Camera

Surface Lighting

Calibration Block

Power Line

Product Certifificate

Datasheet
