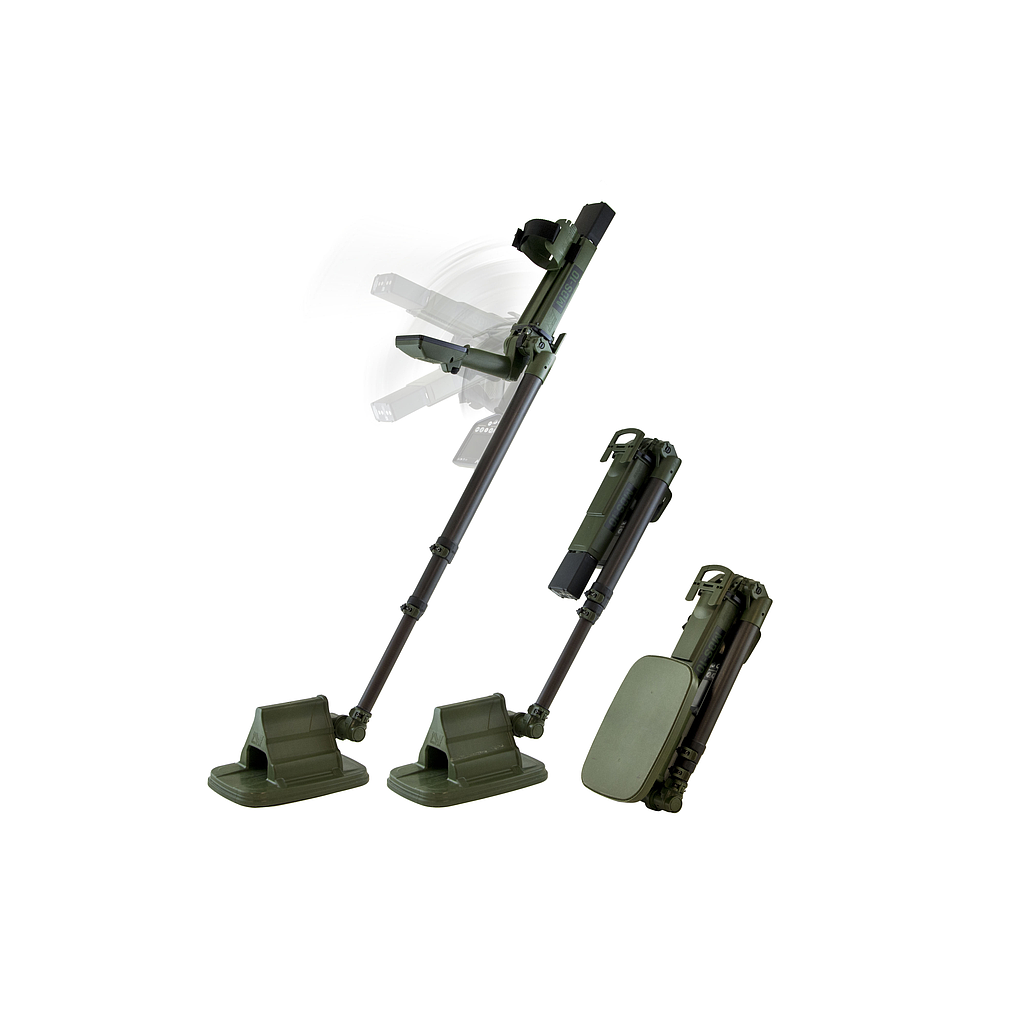

MINELAB MDS-10 Dual Sensor Metal Detector

Collapsed Detector Dimensions: 485 × 152 × 195 mm

Extended Detector Dimensions: 1567 × 275 × 195 mm

Detector Weight: 2.8 kg (6.2 lbs)

Lithium-Ion Battery: 6.8 Ah; Battery Life: >7 hours

AA Battery Pack: For use with AA alkaline or rechargeable batteries

Detection Alert: All alerts independently configurable; Audio Speaker, Audio Headphones, MD and GPR target indicators (with Night Vision Goggles compatibility), Vibration Motor (Haptic feedback), and 3.5″ Colour LCD with Night Vision Mode

Waterproof: ≤3 meters

Standards: MIL-STD-810G

EMC: MIL-STD-461G

IP Rating: IP68

Operating Temperature: -30°C to +60°C

Storage Temperature Range: -50°C to +80°C

Metal Detection Sensor:

Technology: Simultaneous Multi-Frequency Digital

Coil: 269 × 191 mm Mono Transmit, Figure 8 Receive Coil

MD Modes: Detection / Interrogation / Pinpointing

Calibration: Ground Balance and Noise Cancel

Ground Penetrating Radar:

Technology: Ultra-Wide Band (UWB) Impulse Radar

Calibration: Skyshot (2–3 seconds calibration time)
