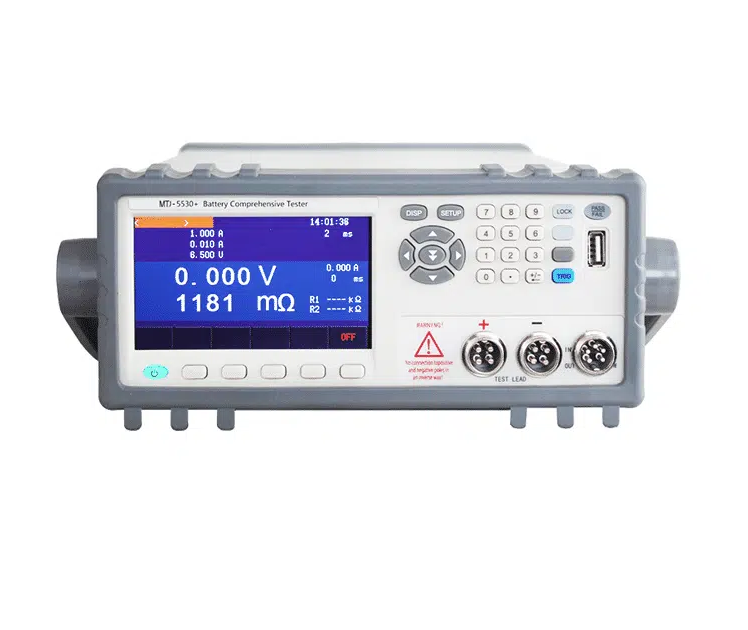

MultiTech MTJ-5530+ 电池综合测试仪 (60V, 1999mΩ, 99999mAH)

Testing Range:

Voltage Measuring Range: 0-60V; Resolution:1mV; Accuracy:±30mV

Internal Resistance; Measurement Range: 0-1999mΩ; Resolution1mΩ

Capacity Measurement Range: 0-99999mAH, Minimum Resolution 1mAH

R1 R2 Resistance :  1kΩ~200kΩ

Accuracy:

Voltage Measuring Range:  ±(Result*%0,1+3mV)(Voltage 0~36V); ±(Result*0.1%+30mV)(Voltage 37~60V)

Current Measuring Range : ±(Result*%0,2+30mA)(Current 0~10A); ±(Result*0.5%+30mA)(Current 11~30A)

Dahili Resistance Measuring : ±(Result*1%+1mΩ)

Capacity Measurement Accuracy:  ±2%

Test Speed:

Static Test (All Functions):  1.1-2s

Capacity Test : Determine the capacity test time according to the battery capacity and discharge power
