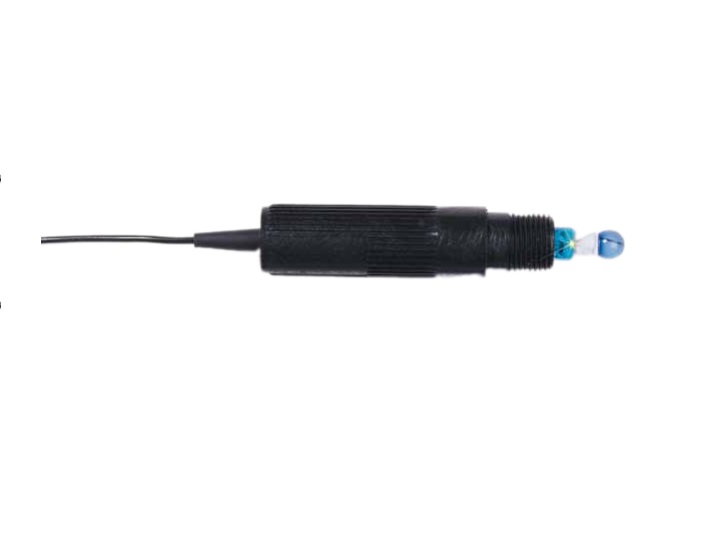

Description: Industrial in-line combination, general purpose, gel filled, pH electrode, PVDF housing, ¹⁄₂" MNPT threading, insertion length 1". 10' of cable standard; dimensions: 127 x 25 mm (5 x 1")
Range: 0 to 13 pH
Process Connection Type: NPT Male
Process Connection Size: 1/2"
Wetted Materials: PVDF
Output: 0 pH = +414.1 mV;
14 pH = -414.1 mV @ 25°C (77°F)
Temperature: 0 to 100°C (32 to 212°F)
Impedance: 10 kΩ
Unity Gain: 1
Power Supply: ±1.5 Vdc to ±9 Vdc; 0.5 mA current
