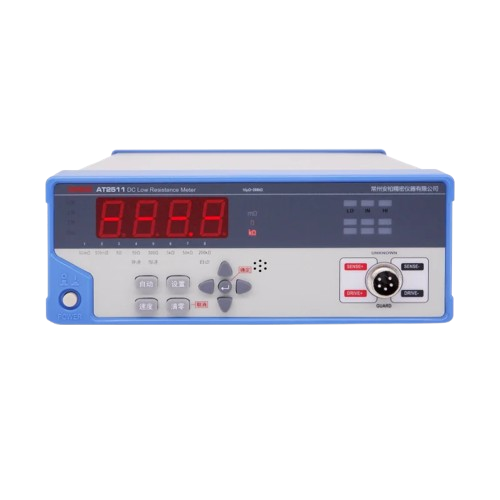

ONMEAS AT2511 DC Low Resistance Tester (1 CH; 10μΩ – 200kΩ)

Channels: Single Channel

Measurement Parameters: DC Low Resistance

Basic Accuracy: 0.2%

Measurement Range: 10μΩ – 200kΩ

Signal Source: Maximum Current: I - Max: <100mA (Low-current testing, compatible with Hioki 3540)

Current Mode: Auto

Range: 8 ranges, auto and manual

Measurement Speed: Slow: 3 readings/s, Fast: 10 readings/s

Maximum Reading: 5,000

Calibration: Full-range short-circuit zeroing

Comparator: OFF / PASS / HI / LO

Trigger Mode: Internal Trigger

Test Terminals: 4-terminal shielded (2 sense + 2 source) with external shield ground

Instrument Dimensions: Approx. 220mm × 85mm × 259mm (W × H × D)

Net Weight: Approx. 2kg

Power Requirements: 198–252V AC, 48.5–52.5Hz, 15VA
