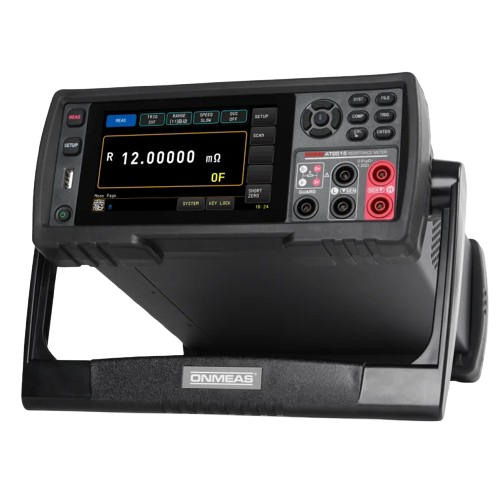

ONMEAS AT2515-12 DC Ultra-Low Resistance Tester (12CH)

Channels: 12 Channels

Measurement Parameters: DC Resistance

Basic Accuracy: 0.008%

Measurement Range: 0.00001mΩ~1.2GΩ

Signal Source: Maximum Current: 1μA~1A

Range: 12 ranges, auto, manual and nominal

Measurement Speed: Slow: 4 times/sec; Medium: 8 times/sec; Fast: 40 times/sec; High: 100 times/sec (with external trigger in high-speed mode, the instrument simplifies interface refresh, achieving a minimum single measurement time of 2.5ms)

Display Results: Direct reading / ΔABS / Δ% and sorting results: Pass (GD), Fail (NG), Off (OFF)

Maximum Reading: 1200000

Calibration: Open and short circuit zeroing

Comparator: 10 group of comparator functions

Trigger Mode: Internal, external (manual and remote) trigger

Test Terminals: Four-terminal test

Contact Check Function: Supported

Net Weight: 5kg

Power Requirements: Voltage: 90-250VAC, Frequency: 50/60Hz, Power: 15VA

Interface: RS232/RS485/LAN/USB

Others: 5-inch touch screen; Keyboard lock and data hold function; SCPI and Modbus (RTU)
