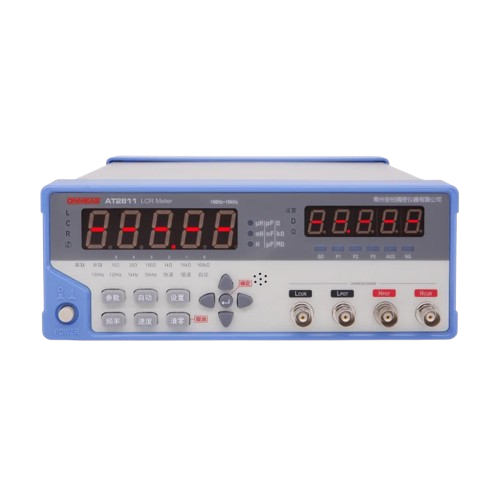

ONMEAS AT2811 LCR Digital Bridge (100Hz, 120Hz, 1kHz, 10kHz)

Measurement Parameters: L, C, R, |Z|, D, Q

Basic Accuracy: 0.25%

Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz

Test Range: Auto, Manual, 6 ranges

Test Speed: 15 readings/s, 5 readings/s, 3 readings/s

Output Impedance: 30Ω and 100Ω

Signal Level: 0.1Vrms, 0.3Vrms and 1Vrms

Readings: All parameters 6 digits: 999999

Display Range:

L: 0.01μH - 9999H

C: 0.01pF - 9999μF

R, X, Z: 0.0001Ω - 99.99MΩ

D: 0.0001 - 9.9999

Q: 0.0001 - 999.9

Equivalent Mode: Series and Parallel

Trigger Mode: 6 ranges, Auto and Manual

Comparator: 5-bin sorting: P1/P2/P3/AUX/NG

Comparison Mode: SEQ/ABS/PER

Calibration: Short circuit zero, open circuit zero, frequency sweep zero within full range

Beeper Function: Off/P1/P2/P3/AUX/NG

Other Functions: Auto LCZ

nstrument Dimensions: 264(W)×107(H)×350(D)mm

Net Weight: 4kg

Power Requirements: AC 198V-240V, 50Hz-60Hz, 15W MAX

Other: Auto LCR parameter selection, 0.8-inch bright LED display
