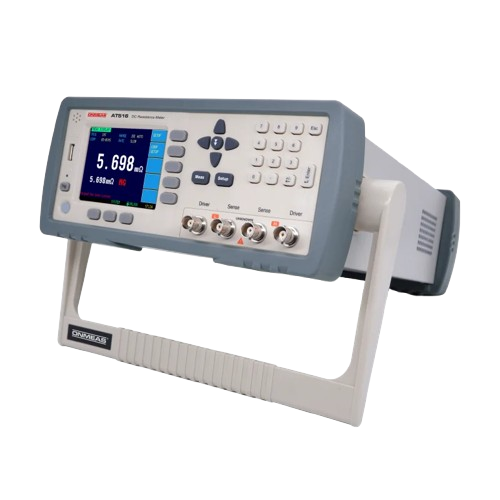

ONMEAS AT516L DC Low Resistance Tester (1μΩ–30kΩ; <1A)

Channels: Single Channel

Measurement Parameters: DC Resistance/ DC Low Resistance

Basic Accuracy: 0.1%

Measurement Range: 1μΩ–30kΩ

Signal Source: Maximum Current: Max current: <1A

Current Mode: -

Range: Seven ranges, auto and manual

Measurement Speed: Medium: 12 readings/sec, Slow: 2 readings/sec

Display Results: Direct reading, ΔABS, Δ%, and sorting result

Maximum Reading: 30,000

Calibration: Full range short-circuit zero correction

Comparator: One group comparator with buzzer alarm

Trigger Mode: Internal, manual, remote, external, and level trigger

Temperature Compensation: Accuracy: 0.2°C, Range: 0–80°C

Test Terminals: 4-terminal shielded (2 sense and 2 source) with external shield ground

Instrument Dimensions: 264(W) × 107(H) × 350(D) mm

Net Weight: 4 kg

Voltage: 198VAC–240VAC, Frequency: 50Hz, Power: 15VA

Interface: RS232C, USB

Others: True color TFT-LCD display, data hold function, Chinese/English menu
