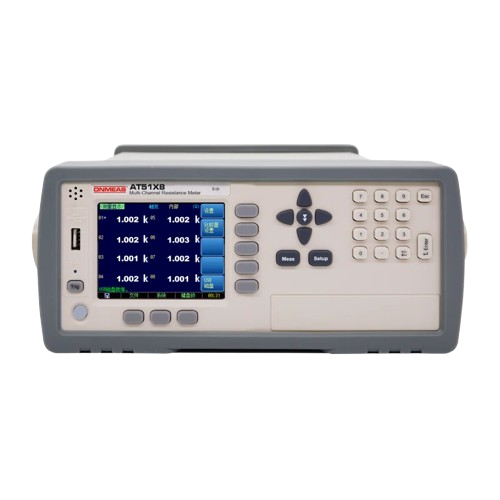

ONMEAS AT51X8 DC Ultra-Low Resistance Tester (8 CH; 1μΩ～30kΩ)

Number of Channels: 8 channels (Parallel measurement)

Measurement Parameters: DC Low Resistance

Basic Accuracy: 0.05%

Measurement Range: 1μΩ～30kΩ

Signal Source: Maximum Current: 1μA~1A

Current Mode: Auto

Range: Auto range, Manual range, Nominal range

Measurement Speed: 30ms/channel (Manual range)

Display Results: 8 channels direct reading

Maximum Reading: 30,000

Calibration: Full-range short circuit zero calibration

Comparator: Independent setting for 8 channels

Trigger Mode: Internal trigger, External trigger, Manual trigger, Remote trigger

Temperature Compensation: Accuracy: 0.2°C, Measuring range: 0～80°C

Test Terminals: 4-terminal shielded (including 2 sense terminals and 2 source terminals)

Contact Check Function: Supported

Instrument Dimensions: Approx. 216×88×323 (W×H×D) mm

Net Weight: Approx. 5kg

Power Requirements: 220VAC, 50Hz, 20VA

Interface: RS-232C (SCPI), HANDLER (PLC), USB, Temperature Compensation
