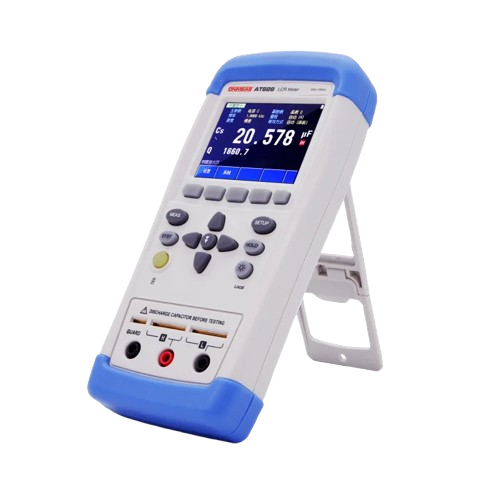

ONMEAS AT828 Handheld LCR Digital Bridge (50Hz, ..., 100kHz; 0.2%)

Measurement Parameters: C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-θr, Z-θd

Basic Accuracy: 0.2%

Test Frequency: 50Hz, 100Hz, 120Hz, 1kHz, 2kHz, 10kHz, 50kHz, 100kHz

Test Range: Auto and Manual

Test Speed: Slow: 2.5/sec, Fast: 10/sec

Output Impedance: 100Ω

Signal Level: 0.3V, 0.7V, and 1.0Vrms, Accuracy: 10%

Monitor Parameters: -

Readings: Primary: 50,000; Secondary: 50,000

Display Range:

L: 0.001μH to 9999H

C: 0.01pF to 9999mF

R, X, Z: 0.0001Ω to 99.99MΩ

D: 0.0001 to 9.999

Q: 0.0001 to 999.9

Equivalent Mode: Series, Parallel

Trigger Mode: Internal

Comparison Mode: SEQ/ABS/PER

Calibration: Open-circuit and Short-circuit Calibration

File: USB Storage

Other Functions: Touchscreen, Chinese/English menu, 4-level backlight adjustment, Auto power off

General Parameters

Dimensions: Instrument Dimensions: 90(W) × 195(H) × 35.5(D) mm

Weight: Net Weight: 400 g

Power Requirements: Power Adapter/Charger: Input 85-240V AC, 50/60Hz 0.35A; Output 9V 1A DC

Interface: USB-HID Communication, USB Type-C

Communication Protocol: SCPI

Other: Touchscreen, Chinese/English menu, 4-level backlight adjustment, Auto power off
