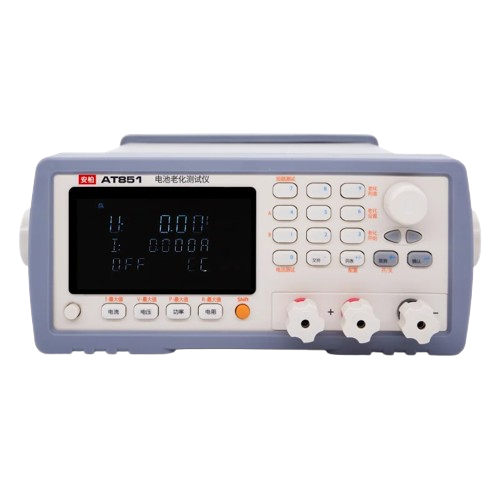

ONMEAS AT851 Battery Life Tester (300W, 120V, 30A; CC, CV, CP, CR)

Rated Input: 300W, 120V, 30A

Constant Voltage: 0–18V: Resolution: 0.001V, Accuracy: 0.05%; 0–120V: Resolution: 0.01V, Accuracy: 0.05%

Constant Current: 0–3A: Resolution: 0.0001A, Accuracy: 0.05%; 0–30A: Resolution: 0.001A, Accuracy: 0.1%

Constant Power: 0–100W: Resolution: 0.001W, Accuracy: 1%; Above 100W: Resolution: 0.01W, Accuracy: 1%

Constant Resistance: 0.1–99Ω: Resolution: 0.01Ω, Accuracy: 1%; 100–4kΩ: Resolution: 0.1Ω, Accuracy: 1%

Short Circuit Test: Current: approx. 30A; Internal resistance: approx. 40mΩ

Battery Life Test: Cycle count: 999

Comprehensive Test: Discharge-Charge-Discharge-Standby

Battery Capacity Test: MAX 999.99AH

Monitoring: Voltmeter accuracy: 0.02%; Ammeter accuracy: 0.1%; Charge time: 0–1000 hours; Capacity detection: 0–999AH; Standby time: 0–1000 hours; Cycle count: 0–10000

Test Speed: Fast: 10/s; Slow: 3/s

Protection: 5-level protection

Trigger Mode: Internal trigger; Bus trigger; External trigger

Instrument Dimensions: 264mm (W) × 107mm (H) × 350mm (D)

Net Weight: 7kg

Power Requirements: Voltage: 198–252VAC, Frequency: 47.5–52.5Hz, Power: 15VA

Interface: RS-232C interface, Handler interface

Communication Protocol: SCPI protocol
