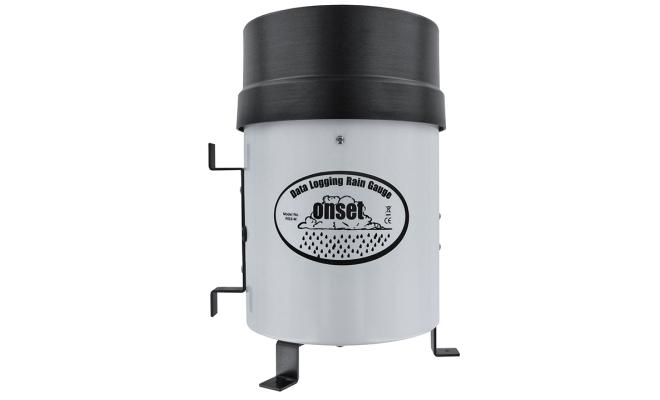

Onset RG3 HOBO Rain Gauge Data Logger (12.7 cm/h)

Rain Gauge:

  Maximum Rainfall Rate: 12.7 cm (5 in.) per hour

  Calibration Accuracy: ±1.0% ( up to 1 in. per hour)

  Resolution: 0.01 in.

  Operating Temperature Range: 0° to 50°C (32° to 122°F)

  Storage Temperature Range: -20° to 70°C (-4° to 158°F)

  Dimensions: 25.72 cm height x 15.24 cm diameter (10.125 x 6 in.);

15.39 cm (6.06 in.) receiving orifice

  Weight: 1.2 Kg (2.5 lbs)

Logger:

  Time Stamp Resolution: 1.0 second

  Time Accuracy: ±1 minute per month at 25°C (77°F)

  Operating Range: -20° to 70°C (-4° to 158°F)

  Battery: CR-2032 3V lithium battery; 1 year typical use

  Memory: 64K bytes – 16K to 23K when recording events only; 25K to 30K data points when recording events and temperature

What's In The Box:

  Tipping-bucket rainfall collector

  HOBO Pendant Event Logger

  Mounting accessories: two hose clamps, three screws

A battery-powered rainfall data collection and recording system that includes a HOBO Pendant Event data logger integrated into a tipping-bucket rain gauge. This model automatically records up to 160 inches of rainfall at rates up to 12.7 cm (5 in) per hour. Easily collect rainfall, time, and duration data, as well as temperature when used with an optional solar radiation shield (RS1 Solar Radiation Shield or M-RSA). A base station or shuttle is required.
