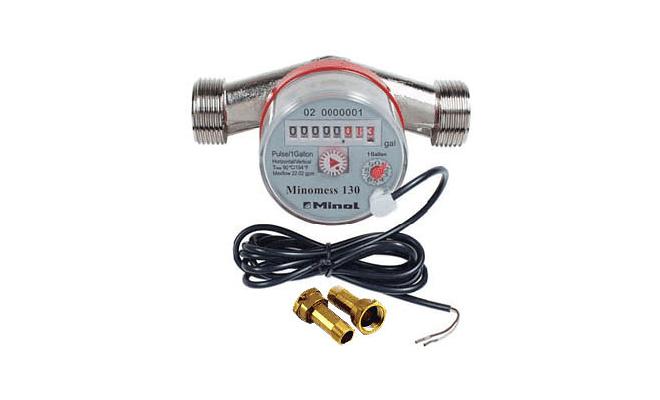

Onset T-MINOL-130-NL No-lead Water Flow Meter Sensor (0.25~22.0)

Measurement range: 0.25 to 22.0

Accuracy: AWWA spec 97 - 103%

Connection size: ANSI/ASME B1.20.1-1983; 1-11.5 SNPSM thread; 5/8 x 3/4 in ID

Dimensions: length 5.12 in, width 2.5 in, height 3.15 in

Cable length: 59 in.

Water temperature range: 40F to 194F

Meter max reading: 99,999,999 US gal

Resolution: 1 contact closure per gal

Body: nickel-plated brass

Weight: 1.32 lbs

Pressure drop: < 8.70 psi typical @ 22 gpm; < 3.6 psi @ 11 gpm

Reed switch: dry contact

For use with HOBO® H21, H22, U30, UX90, UX120, and RX3000 series data loggers

Instructions
