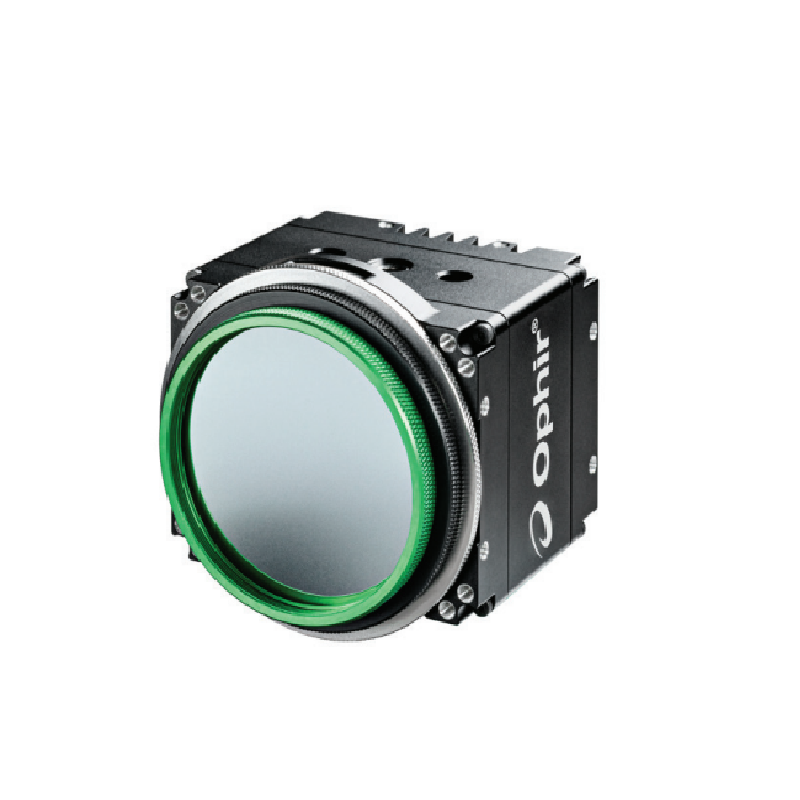

Ophir SP504S 光束轮廓相机 (340 - 1100nm)

Wavelengths: 340 - 1100nm

Beam Sizes: 45μm - 23mm

Interface: GigE (POE)

Sensor Type: CMOS, Global shutter

Compatible Light Sources: CW, Pulsed

Active Area: 23mm x 23mm

Number of effective pixels: 5120 x 5120

Effective Pixel Pitch: 4.5µm x 4.5µm

Damage threshold: 50W/cm2/ 1J/cm for < 100ns pulse width

Dynamic Range: 44.6 dB

Frame Rate at Full Resolution: 4.5fps

Dimensions: 68mm x 68mm x 62.6mm

Compliance: CE, UKCA, China RoHS

BeamGage Professional: BGP-G-SP504S
