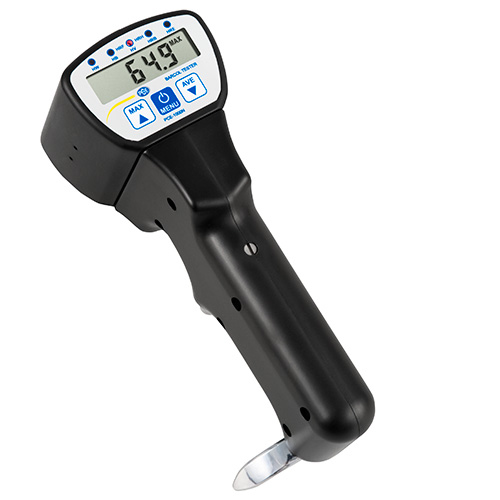

PCE 1000N 硬度计 (0-100 HBA / 25-150 HB)

Specification

Measurement parameters:

Barcol (HBA)

Brinell (HB)

Vickers (HV)

Webster (HW)

Rockwell (HRB / HRE / HRF / HRH)

Measuring range: 0 ... 100 HBA / 25 ... 150 HB

Resolution: 0.1 HBA

Accuracy: 81 .. 88 HBA: ± 1 HBA; 42 ... 48 HBA: ± 2 HBA

Repeatability: 81 .. 88 HBA: ± 1.5 HBA; 42 ... 48 HBA: ± 2.5 HBA

Operating conditions: 0 ... 50°C / 32 ... 122°F; < 50 % relative humidity (RH)

Power supply: 2 x 1.5V AAA batteries

Dimensions: 170 x 63 x 82 mm / 6.6 x 2.4 x 3.2 in

Weight: 390 g / < 1 lb  (without batteries)

Delivery contents

1 x PCE-1000N Barcol hardness tester

2 x Replacement needles

2 x Calibration plates

1 x Needle calibration plate

3 x Screwdrivers

1 x Wrench

1 x User manual

1 x Carrying case
