Direct voltage DC
Measurement range up to : 0 ... 9.999 mV
Resolution: 0.001 mV
Accuracy: ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to: 10 ... 99.99 mV
Resolution : 0.01 mV
Accuracy : ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to : 100 ... 999.9 mV
Resolution: 0.1 mV
Accuracy: ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to: 1 ... 9.999 V
Resolution: 0.001 V
Accuracy: ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to: 10 ... 99.99 V
Resolution: 0.01 V
Accuracy : ±(0.5 % of Rd +3 digits)
Direct voltage DC
Measurement range up to: 100 ... 999.9 V
Resolution: 0.1 V
Accuracy : ±(0.5 % of Rd +3 digits)
Direct current DC
Measurement range up to : 0 ... 9999 µA
Resolution: 1 µA
Accuracy : ±(0.8 % of Rd +3 digits)
Direct current DC
Measurement range up to: 10 ... 99.99 mA
Resolution: 0.01 mA
Accuracy : ±(0.8 % of Rd +3 digits)
Direct current DC
Measurement range up to : 100 ... 999.9 mA
Resolution: 0.1 mA
Accuracy : ±(1 % of Rd +3 digits)
Direct current DC
Measurement range up to : 1 ... 9,999 A
Resolution: 0.001 A
Accuracy : ±(1 % of Rd +3 digits)
Capacity
Measurement range up to : 0 ... 9.999 nF
Resolution: 0.001 nF
Accuracy: ±(5.0 % of Rd +20 digits)
Capacity
Measurement range up to: 10 ... 99.99 nF
Resolution: 0.01 nF
Accuracy : ±(2.0 % of Rd +5 digits)
Capacity
Measurement range up to: 100 ... 999.9 nF
Resolution: 0.1 nF
Accuracy: ±(2.0 % of Rd +5 digits)
Capacity
Measurement range up to: 1 ... 9.999 µF
Resolution: 0.001 µF
Accuracy : ±(2.0 % of Rd +5 digits)
Capacity
Measurement range up to: 10 ... 99.99 µF
Resolution: 0.01 µF
Accuracy : ±(2.0 % of Rd +5 digits)
Capacity
Measurement range up to: 100 ... 999.9 µF
Resolution: 0.1 µF
Accuracy : ±(2.0 % of Rd +5 digits)
Capacity
Measurement range up to: 1 ... 9.999 mF
Resolution: 0.001 mF
Accuracy: ±(5.0 % of Rd +5 digits)
AC voltage
Measurement range up to: 0 ... 9.999 mV
Resolution: 0.001 mV
Accuracy: ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
AC voltage
Measurement range up to: 10 ... 99.99 mV
Resolution: 0.01 mV
Accuracy : ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
AC voltage
Measurement range up to: 100 ... 999.9 mV
Resolution: 0.1 mV
Accuracy: ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
AC voltage
Measurement range up to : 1 ... 9.999 V
Resolution: 0.001 V
Accuracy: ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
AC voltage
Measurement range up to: 10 ... 99.99 V
Resolution: 0.01 V
Accuracy: ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
AC voltage
Measurement range up to: 100 ... 750 V
Resolution: 0.1 V
Accuracy : ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
Alternating current AC
Measurement range up to: 0 ... 9999 µA
Resolution: 1 µA
Accuracy: ±(1 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
Alternating current AC
Measurement range up to: 10 ... 99.99 mA
Resolution: 0.01 mA
Accuracy: ±(1 % of Rd +3 digits)
Frequency range : 40 ... 1000 Hz
Alternating current AC
Measurement range up to: 100 ... 999.9 mA
Resolution: 0.1 mA
Accuracy: ±(1.2 % of Rd +3 digits)
Frequency range : 40 ... 1000 Hz
Alternating current AC
Measurement range up to: 1 ... 9.999 A
Resolution: 0.001 A
Accuracy: ±(1.2 % of Rd +3 digits)
Frequency range: 40 ... 1000 Hz
Resistance
Measurement range up to: 0 ... 99.99 Ω
Resolution: 0.01 Ω
Accuracy: ±(1 % of Rd +3 digits)
Resistance
Measurement range up to: 100 ... 999.9 Ω
Resolution: 0.1 Ω
Accuracy: ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to : 1 ... 9.999 kΩ
Resolution: 0.001 kΩ
Accuracy: ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to: 10 ... 99.99 kΩ
Resolution: 0.01 kΩ
Accuracy: ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to: 100 ... 999.9 kΩ
Resolution: 0.1 kΩ
Accuracy: ±(0.5 % of Rd +3 digits)
Resistance
Measurement range up to: 1 ... 9.999 M Ω
Resolution: 0.001 M Ω
Accuracy: ±(1.5 % of Rd +3 digits)
Resistance
Measurement range up to: 10 ... 99.99 M Ω
Resolution: 0.01 M Ω
Accuracy: ±(3.0 % of Rd +5 digits)
Duty cycle
Measurement range up to : 1 ... 99 %
Resolution: 0.1 %
Accuracy: ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to: 0 ... 99.99 Hz
Resolution: 0.01 Hz
Accuracy: ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to: 100 ... 999.9 Hz
Resolution: 0.1 Hz
Accuracy: ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to : 1 ... 9.999 kHz
Resolution: 0.001 kHz
Accuracy: ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to: 10 ... 99.99 kHz
Resolution: 0.01 kHz
Accuracy: ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to: 100 ... 999.9 kHz
Resolution: 0.1 kHz
Accuracy: ±(0.1 % of Rd +2 digits)
Frequency
Measurement range up to : 1 ... 5 MHz
Resolution: 0.001 MHz
Accuracy: ±(0.1 % of Rd +2 digits)
Temperature
Measurement range up to: -20 ... +1000 °C
Resolution : 1 °C
Accuracy: ±(2.5 % of Rd +5 digits)
Temperature
Measurement range up to: -4 ... +1832 °F
Resolution: 1 °F
Accuracy: ±(2.5 % of Rd +5 digits)
General technical data
Measuring functions: HOLD
Display type: LCD with backlight
Display size: 2.8 Inch
Measuring rate: 3 x per second
Automatic power-off: 5 min
Safety standard: CAT II 1000 V, CAT III 600 V
Measurement range selection: Automatic, Manual
Menu language: English, English (GB)
Protection class (device): IP20
Weight: 175 g
Operating conditions: 0 ... 40 °C , 0 ... 75 % RH
Storage conditions: -20 ... 60 °C , 0 ... 80 % RH
(Rechargeable) battery: 2 x 1,5 V AA battery , Alkali-manganese
Capacity: 3000 mAh
Dimensions ( L x W x H ): 140 x 70 x 35 mm
Direct voltage DC:
Electrical specification
Measurement range of direct voltage DC:
Max: 100~999.9 V
Min: 100~999.9 mV
(Direct voltage DC, Capacity, AC voltage, Resistance,...) see on Datasheet
Delivery Scope

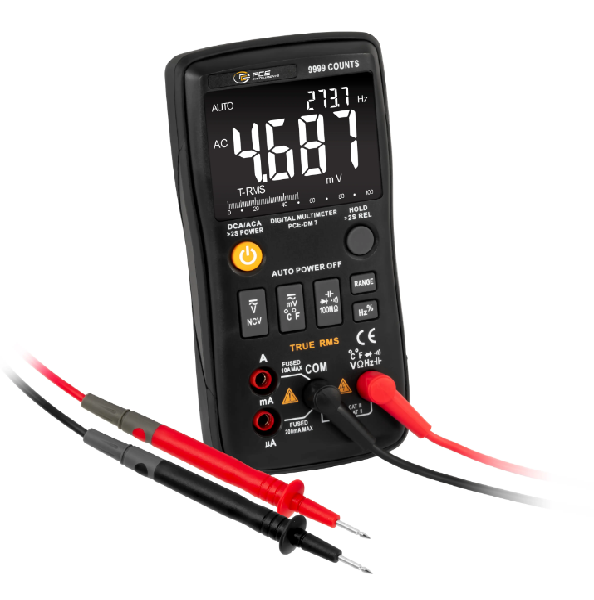

1 x Voltmeter PCE-DM 7
1 x temperature sensor
1 x test leads
2 x 1.5 V AA battery
1 x user manual
1 x storage bag
