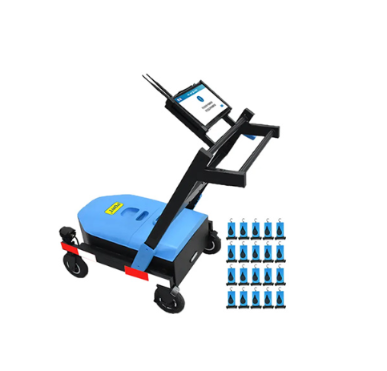

PQWT PQWT-LDC （20M） Water Leakage Detection Trolley (20 sensors, 9M, 56KG)

Wireless Monitoring Sensors: 20pcs

Frequency Range: 1~20KHz

Gain: 10 levels adjustable

Filter: 10 levels adjustable

Working Altitude: Within 2000 meters

Memory Storage: 8GB LPDDR3+128G EMMC

Standby Time: 6 hours

Operating Temperature: 20°~+50°C

Packing weight: 61.5kg

Package Size: 900*550*530 mm

Net weight: 33kg

Application Scenario: Water supply, heating, fire fighting and other pressure pipes

Central controller: CPU Intel: Celeron N5100; GPU Intel: HD Graph- ics515

Signal Repeater: Core: WA5200, Battery Capacity: 12V/5000 mAh

Wireless Distance: Diameter 100M

Host Battery: Polymer lon Battery 7.4V/5000 mAh

Monitoring Sensor: Dual Antenna: 2.4GH; Battery Capacity: 3.7V/3150  mAh

LCD Resolution: 1200xRGB(3)x1920 Size: 10.1 inch 16:10; Brightness:300 cd/m2

Advantages：

1.B-P algorithm technology, locating leak point accurately with wireless monitoring sensors under pipeline direction unknown circumstances.

2.Designed for conducting rapid water leakage detection and inspection work for large areas of water supply, heating, fire and other pipelines.

3.Live record in real-time and all collected sound can be saved. These functions make the inspection work more convenient.

4.Automatic calibration and analysis to determine the leakage point, designed for various kinds of pipe materials and stratum medium.

5.Strong anti-interference, filter environmental noise and distinguish the sound of water leakage
