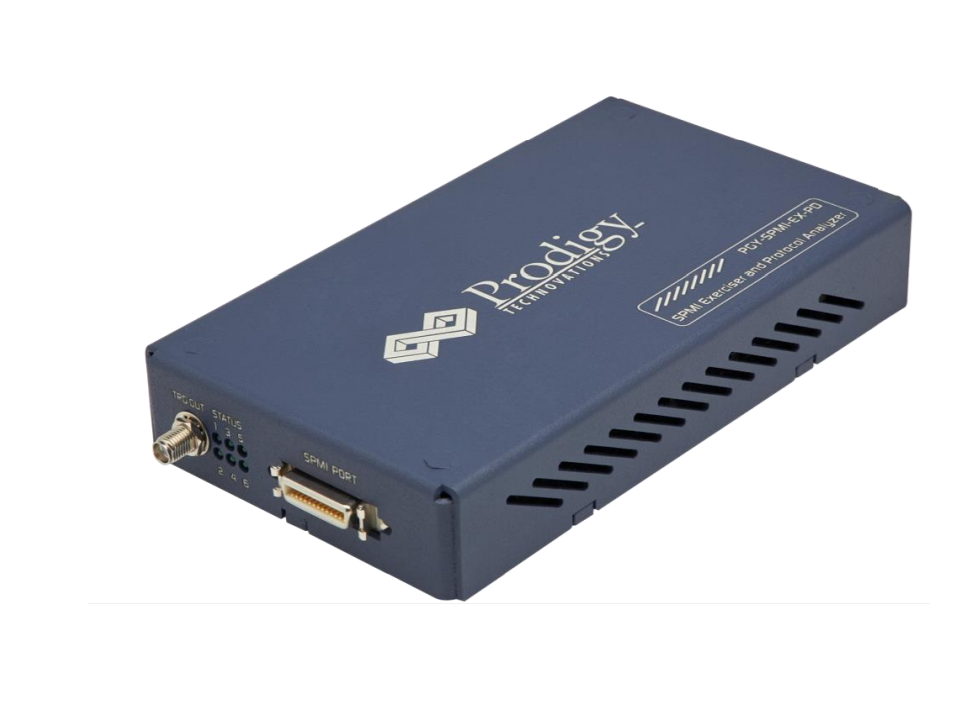

Prodigy Technovations PGY-SPMI-EX-PD SPMI Protocol Exerciser and Analyzer

Exerciser:

Configurable: 1 Master + 2 Slaves

SPMI Traffic Generation: Custom SPMI traffic generation ;Simulate real world network traffic

SCL Frequency: 32 kHz to 26 MHz

Voltage Drive Level: 1.2V or 1.8V

Command sequence Support: All command sequence is supported except DDB master Read

SCLK Duty Cycle variation: YES. (can be 25%, 50%, 75%)

SCLK & SDATA Delay: Resolution (4ns)

Delay between two messages YES

Specification: SPMI 1.0 and SPMI 2.0

SPMI network: Sole master and multi master

Error injection:

-  Master

+ Data parity,

+ command parity,

+ address parity

+ Skip SSC (only in Sole master systems)

Slave - Data parity (NON RCS)

Protocol Analysis:

Supports: SPMI protocol decode

Protocol Views: Timing Diagram View ; Protocol Listing View; Bus-Diagram to display Protocol packets with timing diagram plot

Protocol Trigger: Simple (Trigger on user defined SPMI packet after SSC)

Capture Duration: Continuous streaming Protocol Data

Protocol Error Report: Data parity, command parity, address parity; ACK/ NACK error

Host Connectivity: USB 3.0 / 2.0 interface
