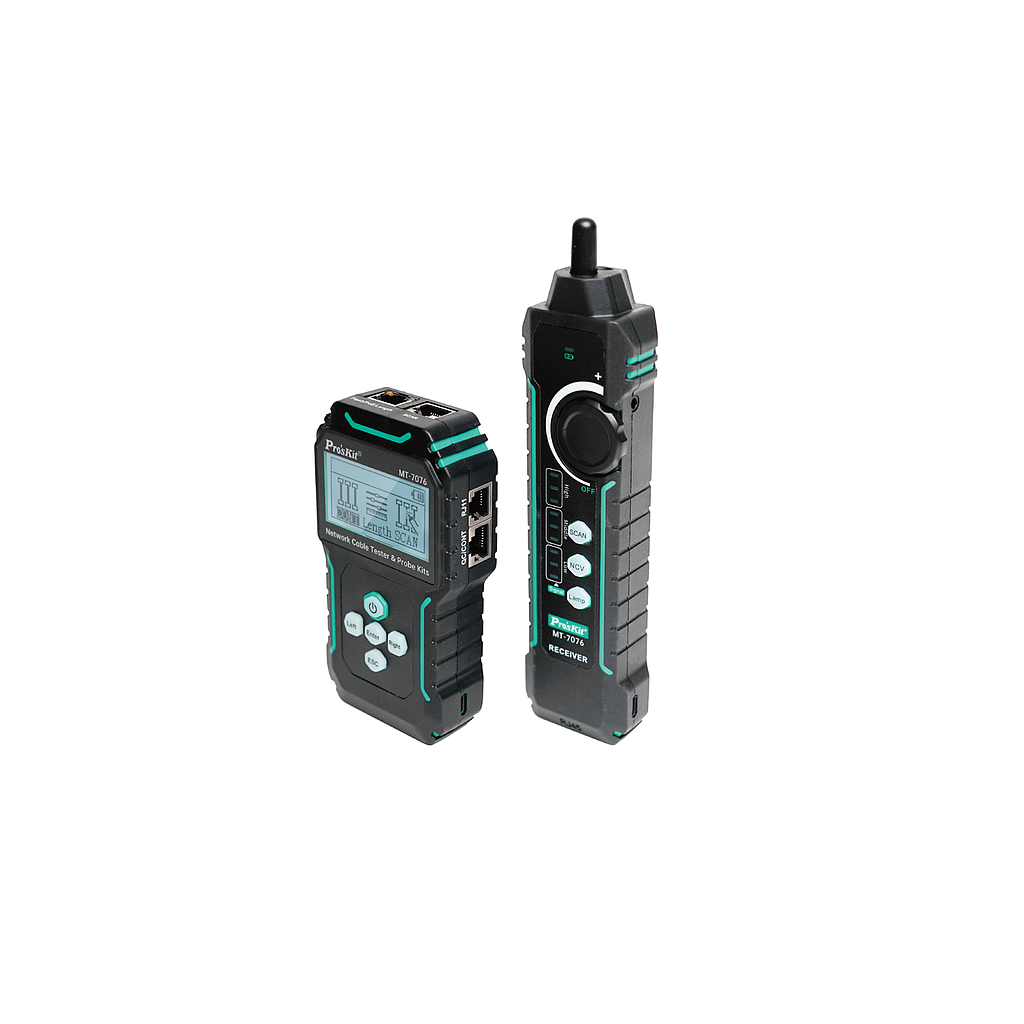

Transmitter Unit
Display: LCD 53 x 29 mm (128 x 64 Dots)
Language: English, Chinese
Connection Ports:
RJ45 x 3 ports
RJ11 x 1 port
Cable Network:
Cable Type: CAT5, CAT5e, CAT6, CAT7
Maximum Range: 300 m
Display: LCD: R&M 1 -8/ G
Cable Length Measurement:
Cable Type: CAT5E, CAT6
Range: 2.5 m – 200 m
Unit: m/ yard/ feet
Accuracy:
≤20m ±1.6m
20m ~ 100m ±2.4m
100m ~ 200m ±3.2m
Cable Tracing:
Signal Type: Analog/ Digital
Cable Type: CAT5E, CAT5E, CAT6 STP/UTP, Telephone cable
Tracing Range:
Analog: 1km
Digital: 600 m
Frequency: 455kHz
Maximum Signal Voltage: 5.0V ± 1Vp-p
Flash Port:
Blinking Frequency: 3s/time
Link Test:
Speeds: 10M/ 100M/ 1000M
Modes: FDX/ HDX, Auto Nego/ Non-Auto Nego
POE Testing:
Type: IEEE802.3af/at; Non-Standard
Connection: Midspan/ Enspan/ 8pin
Voltage Values
Backlight: 15s/30s/65s/on/off
Auto Power Off: 15 min/ 30 min/ 1 hour/ OFF
Power Supply: 3.7V 1400mAh Li-ion
Protection: ≤ 60V DC
Receiver Unit
Signal Type: Analog/ Digital
Sensitivity: Adjustable via rotary potentiometer
Flashlight: 1 LED
NCV (Non-Contact Voltage): AC 70V ~ 1000V 50/60Hz
Low Battery Indicator: Flashing Light
Headphone Jack: 3.2mm port
Power Supply: 3.7V 1400mAh Li-ion
Dimensions: 198 x 50 x 28 mm
