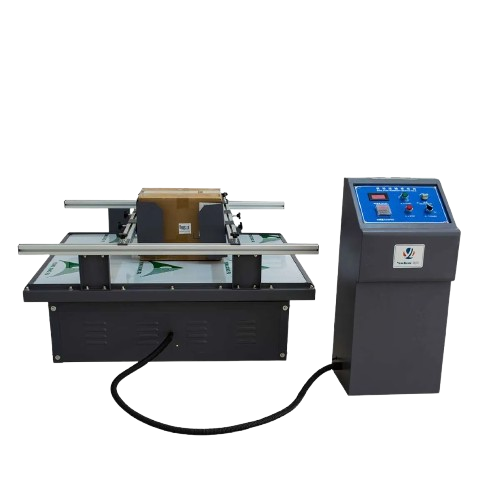

PW Instruments PW-6615 Simulated Transportation Vibration Testing Machine (100kg,25—40km/h)

Technical Parameters

Maximum test load (kg): 100kg（Or specify）

Test bench size: 1200×1000mm（Or specify）

Frequency Range: 50—300rpm

Amplitude range: 1 inch (25.4mm)

Vibration method: Rotary

Simulated vehicle speed: 25—40km/h

Control motor: DC motor (variable frequency motor can be replaced according to customer needs)

Power voltage: AC220V 50HZ

Machine weight: 60kg

PRODUCTS DETAILS

This machine is suitable for similar transportation testing of toys, electronics, furniture, gifts, ceramics, packaging and other products, and meets the transportation standards of the United States and Europe.

Applicable Standards

EN, ANSI, UL, ASTM, ISTA international transportation standards.

The simulation vehicle transportation vibration test bench is an assessment of the ability of various items with specific loads to withstand actual road conditions during road vehicle transportation, so as to obtain the impact of actual working conditions on items in the laboratory, so as to evaluate or evaluate the packaging of items and items. The basis for confirmation.

Features

1. Digital display of vibration frequency, high precision;

2. Synchronous silent broadband transmission, low noise;

3. The sample fixture adopts the guide rail type, which is convenient and safe to operate;

4. The heavy channel steel base is equipped with damping rubber, which is easy to install, strong load and stable operation;

5. Restructured according to similar equipment in Europe and America, with rotary vibration, in line with European and American transportation regulations;

6. It is suitable for testing and testing product packaging in toys, electronics, furniture, gifts, ceramics, packaging and transportation industries;
