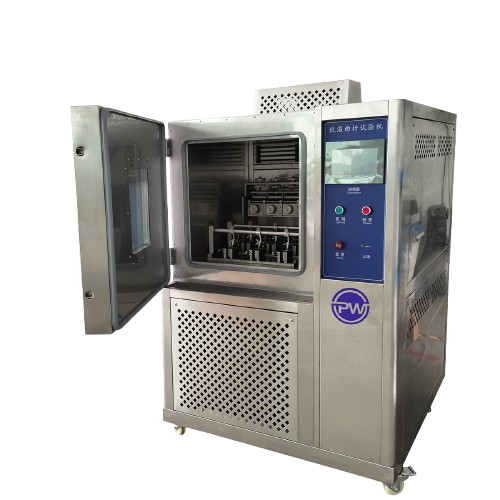

PW Instruments PW-CHL150-40A-FR6 Low-Temperature Flex Resistance Tester (−40°C ~ +150°C)

System: Balanced temperature control system

Temperature range: −40 °C to +150 °C

Temperature fluctuation: ≤ ±0.5 °C

Temperature uniformity: ≤ 2 °C

Temperature accuracy: ±0.2 °C

Heating time: +25 °C → +85 °C, approx. 30 minutes (no load)

Cooling time: +25 °C → −30 °C, approx. 50 minutes (no load)

Standard configuration of test chamber:

Viewing window: 320 × 420 × 40 mm, three-layer vacuum tempered glass

Specimen size: 70 × 45 mm

Flexing angle: 22.5°

Number of test stations: 6 sets

Flexing speed: 0–100 ±3 cpm, adjustable

Flush-mounted handle design

Test capacity: Capable of testing 6 specimen sets simultaneously

Interior energy-saving light: LED illumination

Heating rate: 3–5 °C/min (average)

Cooling rate: 0.7–1 °C/min (average)

Inner chamber dimensions: 500 × 500 × 600 mm

Overall dimensions: 1040 × 1041 × 1472 mm

Power supply: AC 220 V

Machine weight: 310 kg

PRODUCT DETAILS

This instrument is mainly used to test the cold resistance and flexing (bending) resistance of materials, in order to evaluate how materials or finished products perform under low-temperature climates or in cold regions. Various flexing test fixtures can be installed inside the chamber of this machine.
