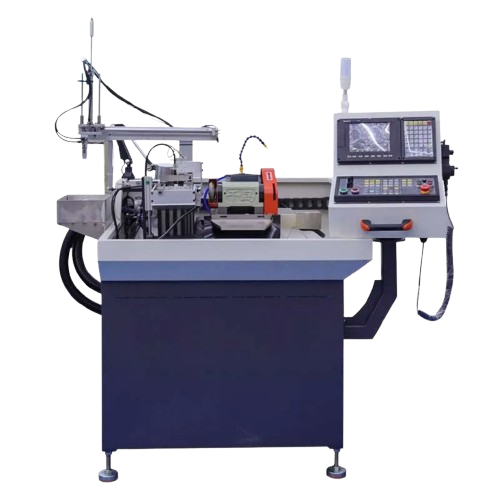

Qian Dao GD-001CNC-A Automatic Outer Diameter Punch Grinding Machine (φ1-25mm,150rpm, 750W)

Clamping range: φ1-25mm

Maximum travel distance

Before and after: 40mm

Maximum travel distance

Left and right: 70mm

Ideal outer diameter machining range: 0.8-25mm

Working head speed: 150rpm

Working head rotation angle: 45°

Spindle motor: 750W

Speed of mainshaft: 6500rpm

Before and after servo motor:

Twisting force: 1.27Nm

Rotation speed: 3000rpm

Power: 400W

Left and right servo motor:

Twisting force: 1.27Nm

Rotation speed: 3000rpm

Power: 400W

Mechanical dimension(LxWxH): 1650*1200*1600mm

Machine weight: 485kg
