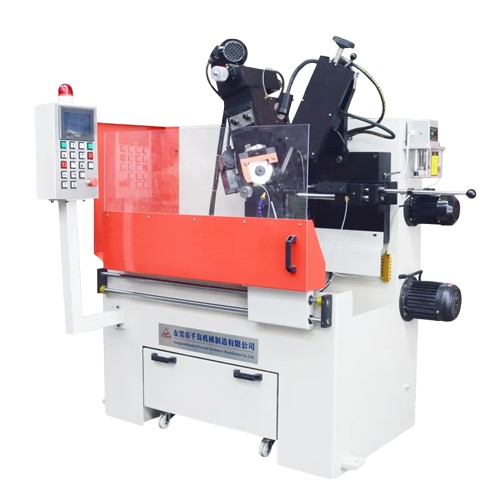

Qian Dao GD-026 Full Automatic （PLC Control）Front and Rear Angle Gear Grinder (Ø80–Ø810 mm, 0.5–6 mm/s)

Processing diameter range: φ80mm—φ810mm

Hole size: φ10mm—φ200mm

Max width: 7mm

Tooth distance: 7mm—100mm

Front and back grinding angle range: -3°— 30°

Back grinding angle range: 6°— 40°

Rear oblique grinding angle range: Left and right≥45°

Grinding stroke: 0mm—25mm

Grinding speed: 0.5mm/s—6mm/s

Working speed: ＜20tooth/min

Grinding wheel parameter

Wheel shape: Dish shape

Grinding wheel parameter

wheel outer diameter: φ125mm

Wheel inner diameter: φ32mm

Cooling System

Wheel line speed: 26 m/s

Coolant pump flow: 25L/min

Cooling System

Water tank rated capacity: 80L

Hydraulic Pressure

Hydraulic pump flow: L/min

Hydraulic working pressure: 4.0MPa

Rated capacity of oil tank: 50L

Machine

Length: 1700mm

Width: 1350mm

Height: 1800mm

Weight: 1000kg

Product details

The aircraft’s design is based on the characteristics of similar models at home and abroad, absorbing and analyzing the advantages of the same type, while making some functional improvements.

Preset multiple sets of tooth types, one-touch multi-function operation.

Tilting flat teeth can be completed at one time, CNC grinding, any tooth type, can increase 3 times efficiency; Improved tooth extraction operation, improve accuracy and prolong service life.
