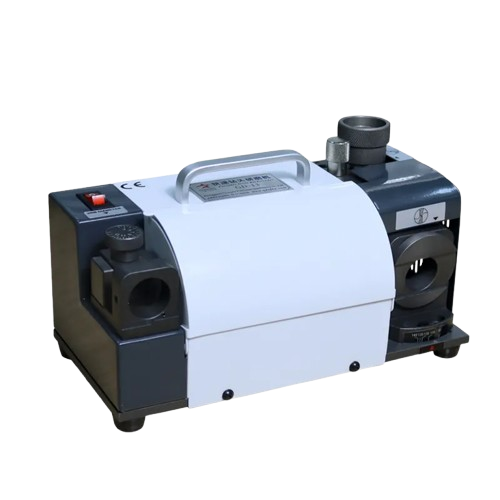

Qian Dao GD-13 Portable Drill Bit Grinder Machine (φ3-φ13mm, 4400 Rpm)

Grinding Range: φ3-φ13mm

Collet size: ER 20

Power: 220V, 50/60Hz 120W

Speed: 4400 RMP/min

Top Angle (apex Angle): 95°-135°

Grinding wheel:CBN (for HSS)×1

Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13

Gross/Net weight: 9/8kg

Product Details

1.Professional drill bit grinder. Grinding is accurate and quick, no special skills required

2.Economical and practical, significant cost saving, improved use efficiency

3.The grinder uses diamond grinding wheel with an accurate angle and long service life

The machine is set up with the function of adjusting central point size, controls the quality and accuracy of the workpiece and extends the service life of the drill bit.
