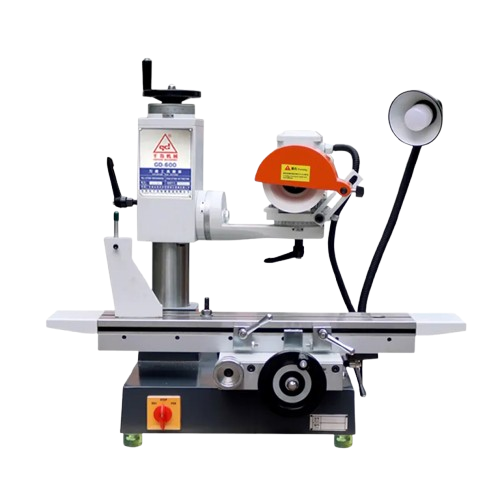

Qian Dao GD-600 Universal Tool Grinder (550W, 2800 Rpm, 360°)

Horizontal Travel of the Oprating table: 270mm

Longitudinal travel of the operating table: 170mm

Area of the operating table: 130*600mm

Elevating Distance of Wheel Head: 140mm

Rotating Angle of Wheel Head: 360°

Grinding Wheel Size: 125*50*32mm

Speed of grinding Wheel: 2800 RPM

Net Weight: 145kg

Voltage: 550W 220V/380V

Product Details

The machine working table adopts high-precision linear guide rails, the table is stable and the operation is easy

With a variety of accessories can be ground: forming tools, end mills, R-type milling cutters, reamers, turning tools, R-type turning tools, gear cutters, drill bits, engraving knives, full back cutters, chamfering knives, round knives, outer grinding, planar grooves, etc.
