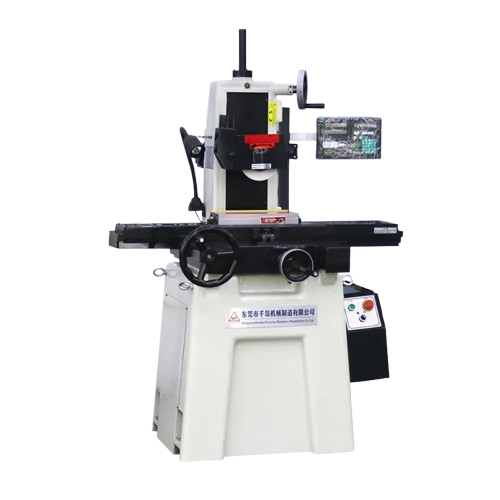

Qian Dao GD-618S Precision Surface Grinder Machine (3600 rpm,1.5HP)

Table size: 150*460mm

X Maximum grinding length: 470mm

Y Maximum grinding length: 160mm

Distance from spindle to worktable: 400 mm

Standard disk size: 150*350mm

X axis manual travel: 460mm

Y axis manual travel: 180mm

Workbench bearable: 200 kg

The workbench mesa size (length * width): 460×180 mm

The workbench T slot: 14×1

Handwheel feed per tick: 0.02mm

Handwheel feed per round: 5

Up and down Elevating handwheel feed per scale: 0.005mm

Up and down Handwheel feed per revolution: 1mm

Grinding wheel size (diameter x width x inside diameter): 180×13×31.75 mm

Spindle speed: 3600 rpm

Grinding head motor power: 1.5HP

Machine dimensions: 1400*1150*1980mm

Gross weight, net weight: 850KG/720KG

PRODUCTS DETAILS :

Column using h-beam structure, high rigidity of wide span slippery course design, precision guide rail grinding, strong rigidity, good stability, precision grinding grind cutting columns not elastic deformation, to ensure that the workpiece machining accuracy and surface finish.

1, Column using h-beam structure, high rigidity of wide span slippery course design, precision guide rail grinding, strong rigidity, good stability, precision grinding grind cutting columns not elastic deformation, to ensure that the workpiece machining accuracy and surface finish.

2, The machine is of the domestic leading, alternative products in Taiwan.
